Overview of the Structure of Calibration Data
In the Calibration Manager, calibration data are managed in calibration groups and calibration data records. The calibration data are stored in a calibration database.
•Calibration group: Is assigned to a device (imagesetter, e.g. Suprasetter). Comprises one or more calibration data records.
•Calibration data record: Several calibration data records are pooled in one calibration group.
A calibration data record comprises the following data:
·Parameters describing an output configuration. These are the screen used, colors, print parameters, process curves, etc.
The calibration data records that suit a job are found in the Prinect Renderer on the basis of these parameters.

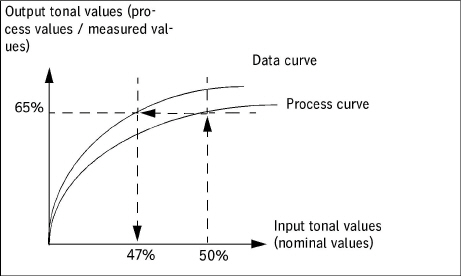

·Data curves and the calibration curves calculated from them and the process curves.

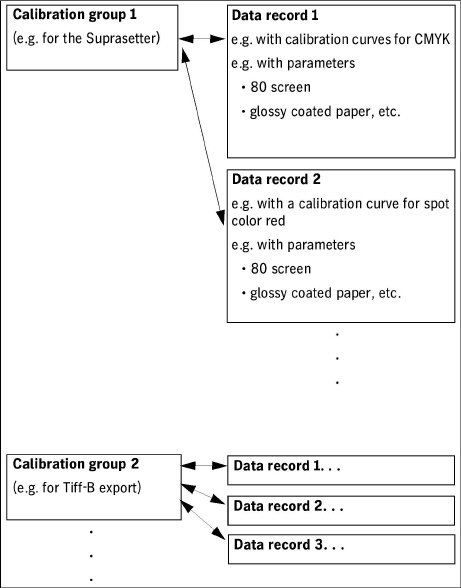

Schematic diagram of the structure of the calibration data:
