'ISO 12642-2 / ANSI IT8.7/4 Random' Test Chart with 1617 Patches

Advantages

•New test chart as an extension of ISO 12642 / ANSI IT8.7/3

•Contains all the patches of ISO 12642 / ANSI IT8.7/3

•Contains all the patches of ISO 12642 / ECI2002

•Contains the CMY patches of PrintOpen Extended

•Many different combinations of black with CMY

•For special black calculations, e.g. PrintOpen 4.0.5.2 for PC and Mac OS X
(not for Mac OS 9)

K: 20%, 40%, 60%, 80%

•Very finely stepped CMY patches 9 x 9 x 9

CMY: 0%, 10%, 20%, 30%, 40%, 55%, 70%, 85%, 100%

•Contains special patches with combinations of 3% and 7% for packaging printing

•Compared with ISO 12642 / ECI2002 contains 132 additional combinations each with 10% black

•Specially for high-end proofs

•Very good profile quality for prints and proofs

Disadvantages

•Problems with the distribution of ink because of the regular arrangement of patches

•Measuring 1617 patches takes longer

Recommended for

•automatic measurements only

•profiling prints and proofs in general

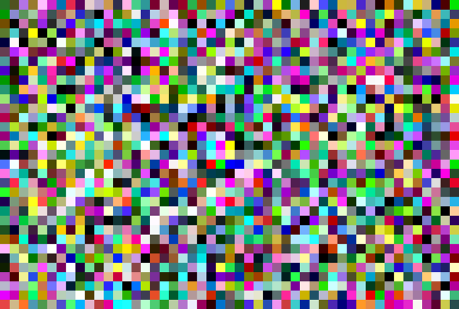

Test chart structure

The "ISO 12642-2 / ANSI IT8/7.4 Random" test chart contains the same 1617 patches as the "ISO 12642-2 / ANSI IT8/7.4 Visual" test chart.
However, the patches in this test chart are rearranged so that ink is always applied evenly to the ink zones during printing. The test chart can be printed both in longitudinal and cross direction.
