Note: Jobs that are in progress on a machine cannot be deleted.
1.Go to "Jobs".
2.Select the job in the job list.
You can also select several jobs by holding down the "Ctrl" key and selecting the jobs you want with the mouse button.
3.Click "Delete".
4.Confirm the prompt with the "Continue" button.
The job is then deleted. Deletion may take some time.
Change Press Assignment to a Different Format
If you want to change the machine assignment and to a different format, the procedure depends on the job progress.
•Up to now, you only created a process network, but no layout. Proceed as follows: Change Machine Assignment in the Process Network
•You have already created a layout. In this case, edit the layout first. Then change the machine assignment in the Planning Assistant. Proceed as follows: Change Machine Assignment with Layout Change.
Change Machine Assignment in the Process Network
1.Go to "Jobs".
2.In the job list, select the job whose machine assignment you wish to change and click "Open".
3.Go to the "Processing" area (1).
4.Select the "ImpositionOutput" and the "SheetfedPrinting" sequences of the press you want to change (2).
5.Select "Assign > Reassign Template" in the context-sensitive menu (3).
The "Reassign a new template for <name of ImpositionOutput sequence>" opens.
6.Select the "ImpositionOutput" sequence for the format to reschedule.
7.Click "Reassign".

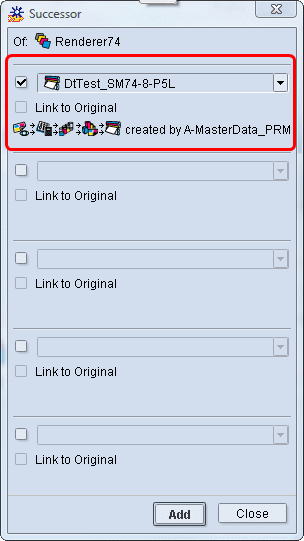

The "Reassign a new template for <name of SheetfedPrinting sequence>" opens.
The machine assignment has been changed.
8.Click "Save".
Change Machine Assignment with Layout Change
The following example only describes the relevant steps in Cockpit. Please refer to the Online Help of Prinect Signa Station to find out how to make the necessary layout changes.
1.Go to "Jobs".
2.In the job list, select the job whose machine assignment you wish to change and click "Open".
3.Go to the "Layout" step.
4.Select the layout and click "Open".
Prinect Signa Station starts interactively.
5.Edit the layout so it matches the other machine. Please refer to the Online Help of Prinect Signa Station to find out how to do this.
6.Save the layout and submit it to Prinect Cockpit.
The layout has been adapted to the new machine. Now you must adapt the process network to the new machine assignment.
7.Go to the Planning Assistant with "Edit > Scheduling".

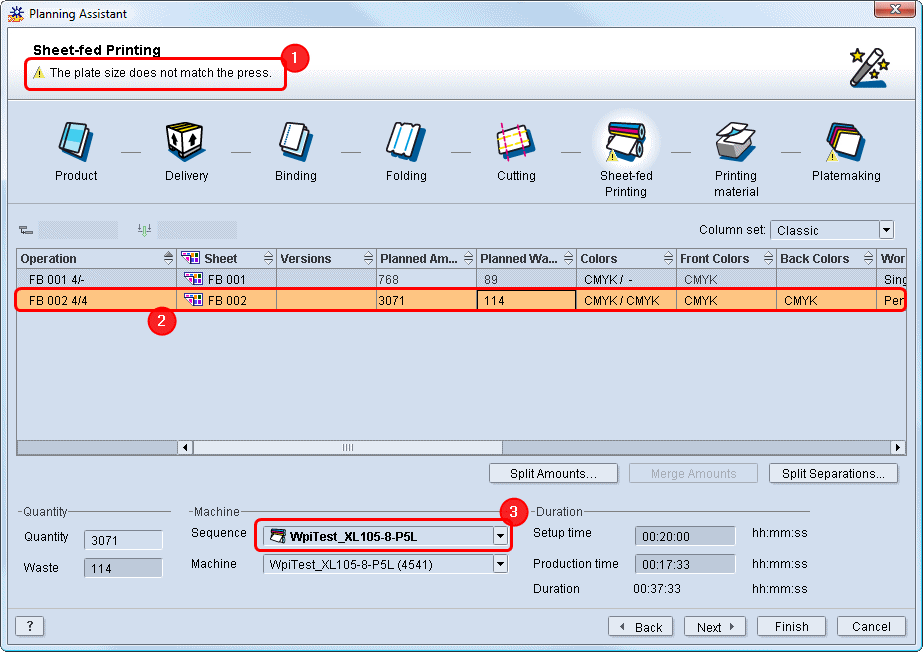

8.Go to the "Sheet-fed printing" step.
A yellow warning triangle indicates that you must match your operations to the new plate format (1).
9.Select the operation for which the format change was made (2).
10.Select the "SheetfedPrinting" sequence for this machine in the "Sequence" list box (3).
A suitable machine is automatically selected in the "Machine" list box.

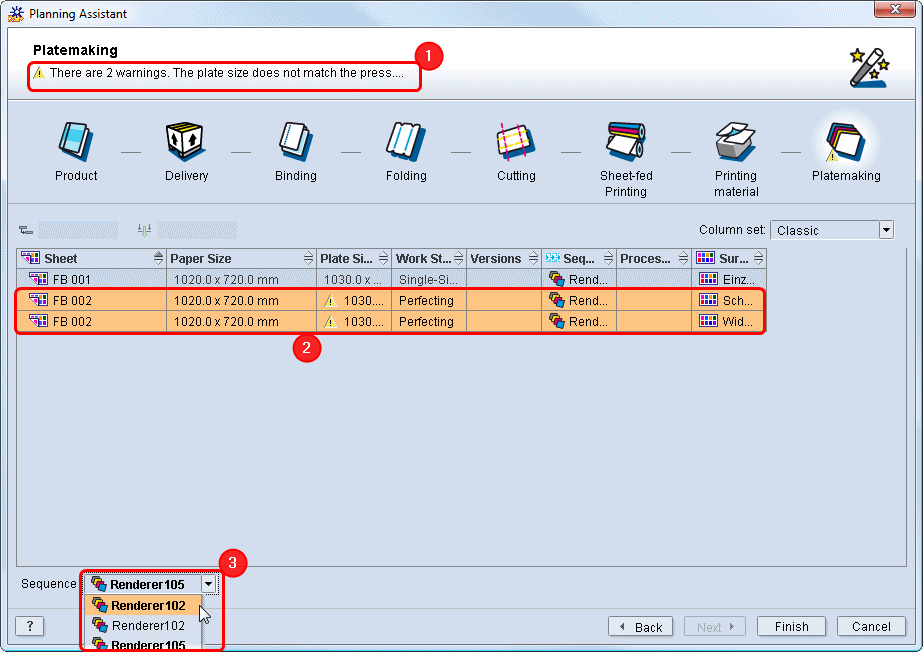

11.Go to the "Platemaking" step.
A yellow warning triangle indicates that you must match your plate size to the press (1).
12.Select all sheets where you have changed the plate format (2).
13.Select the "ImpositionOutput" sequence for the new machine in the "Sequence" list box (3).
14.Click "Finish".
The new process network will be saved. You can check it in the "Processing" area.
