You can submit jobs to ganging in this window. This function is needed to gather parts of a job that have different print requirements to the rest of the job (e.g. covers with a different paper width) together with parts of other jobs that have the same requirements and to print them jointly on one plate (see also Gang jobs).
The data are filed as an xml file in the gang job pool of Prinect Signa Station.
Because pages or sheets of a job must be selected for submit to ganging, the procedure is as follows:
"All sheets" are submitted if there are sheets with assigned pages in the job. Nothing is submitted if no page is assigned.
The "pages of page lists" are submitted if there are page lists with assigned pages instead of sheets.
"All pages" of the job are submitted if there are no page lists with assigned pages. Nothing is submitted if the job has no pages.
Delivery quantity
Enter the delivery quantity in this box.
Overproduction
This is where you enter overproduction in percent.
Product Code
Enter an existing product code in this box.
Version
Note: The list box for "Version" can be used only if versioned sheets are to be submitted.
This is where you select the version to be submitted. You can select single versions to be submitted or "All" if you wish to submit all existing versions.
Note: Depending on the version you selected, the contents of the boxes for delivery quantity and overproduction may change.
Folding
This is where you can overwrite the folding rule of the selected product part template.

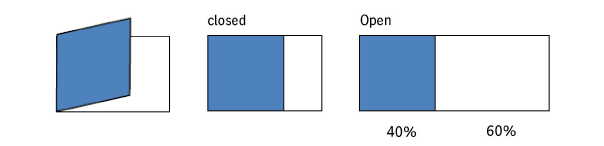

You can also set the proportions for an asymmetric fold. This is done in the "Rule" text box.
Example: Scheme: "F4-1" and rule: "X40X60" (for a business card with an asymmetric fold)
Scheme
You can type the name of the folding scheme directly into this box (e.g. "F4-1").
"Select" button
Click the "Select" button to open a window where the existing schemes of Prinect Signa Station are listed. Select the scheme you need. It displays in the "Scheme" text box only after you confirm with "OK" and close the window.
Rule
You can use this text box whenever the "Scheme" text box has an item. You will find more details about folding rules in the tooltip.
Any available sequence templates display when you click "+". Select a Prepare sequence from the list.
This displays the press sheets enabled by the "Change" button.
"Change" button
Click "Change" to open the "Colors" window. You can select the press sheets you want for ganging in this window.
Printing material quality
This is where you enter the printing material quality using the same term as at Prinect Signa Station (e.g matt, glossy, etc.).
Paper Grammage
This is where you enter the paper grammage in g/m².
Grain Direction
This is where you select the orientation to the paper grain (normal, rotated, uniform).
Set Due Date
The date box you need is enabled for editing when you select the "Set Due Date" function. You can enter a date (day and time) in this box by which the job is to be finished.
"Select Due Date" button
Click this button to display a date window, see also the "Choose Date" Window.
Comment
You can type in any comment in this box, for example, explaining the reason for charging costs.
Status
During "Submit to Ganging", you can add user-defined attributes to the job, edit or delete existing ones. This shows whether attributes are used or not.
"Edit" button
Click the "Edit" button to display the "User-defined Attributes" window. Select the attributes you need for your job. If there are no user-defined attributes in the system, a message displays, informing you where you can create the attributes.
Note: You can create user-defined attributes in "Administration > Preferences > All Users > User-defined Attributes".
Button bar at bottom
|
Button |
Function |
|---|---|
|
OK |
Click this button to apply the changes you made. |
|
Cancel |
Click this button to close the window without doing anything. |
