Administration - Device configuration

Device configuration - User interface

Filter




There are filters above each table in the Device configuration that you can use to filter the list by cer­tain criteria.

Customize columns




You can freely define the table using the "Customize Columns" icon. This means that you define which columns (attributes) are to be displayed.

Flat or structured table




With the "flat or structured table" icon, you toggle between a flat and a structured table. A flat table shows all of the attributes at the same level. With a structured table, you can group the table by par­ticular attributes. To configure the structured table, proceed as follows:

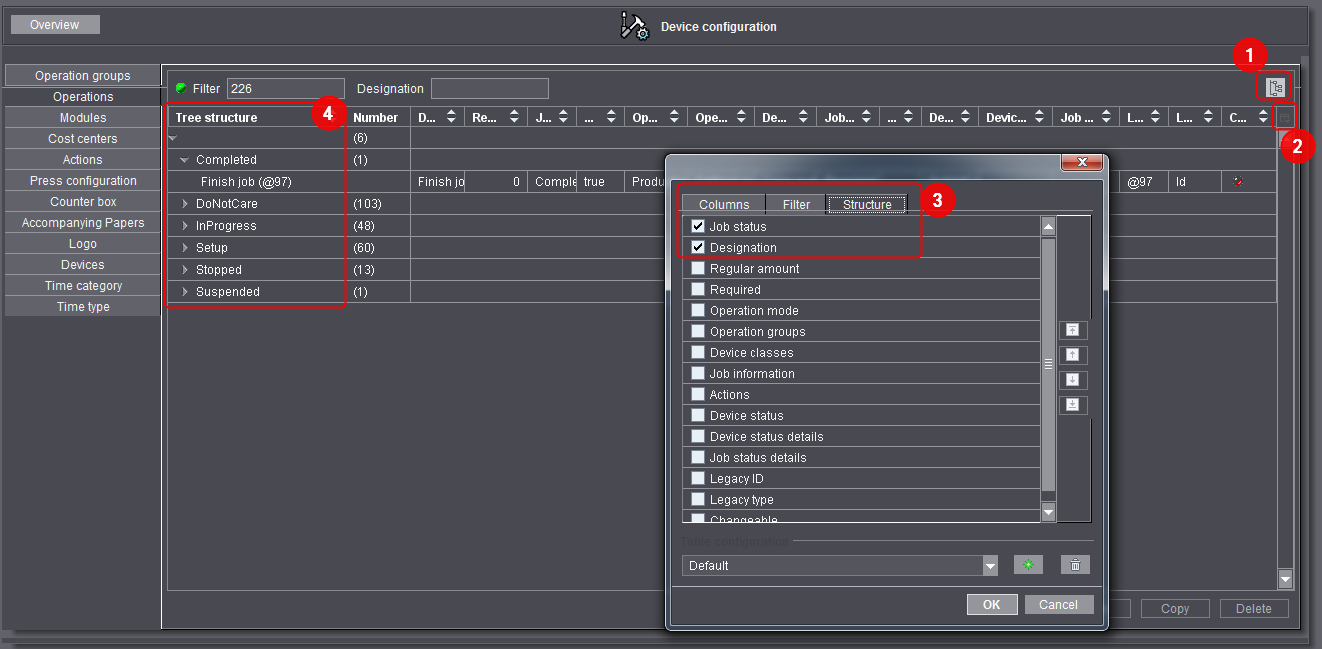

1.Click the "Flat or structured table" icon (1).
The icon will turn darker.

2.Click the "Customize Columns" icon (2).
The "Table configuration" dialog displays.

3.Customize the table in the "Structure" tab (3).

All attributes you selected are shown in the tree structure (4). The topmost attribute forms the first level of the tree structure.

4.Confirm your configuration with "OK".

Icons "Changeable"

Changeable

Explanation

green

This setting can:

•be changed

•be copied

•be deleted

yellow

This setting can:

•be changed

•be copied

red

This setting can:

•not be changed

•be copied

•not be deleted
