Define a custom column set

In the "Column set" list box (on the right above the table) you can select one of the available column sets or you can define a new custom one. A column set defines which columns display in the table and which do not.




Create a new column set

A new column set is created in the following steps:

•Customize a column set:

Define which columns will display.

•Save the set using any name of your choice.

A typical column set will now be created below as an example.

Designation

Table view

Name of Column Set

•My_Scheme

Columns

•Job Number

•Job Name

•Customer Name

•Due date

Filter

•Job Number

•Job Name

Group columns

•Job Number

•Job Name





1.Open the "Column set" list box and select "Customize".

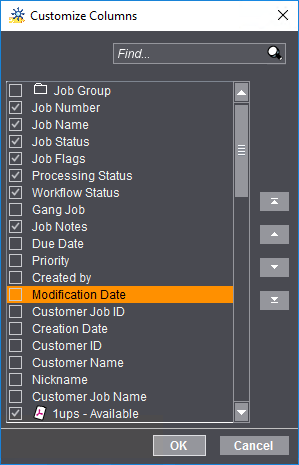

The setup window displays:





2.For our example, enable only "Job Number", "Job Name", "Customer Name" and "Due Date". Disable all other attributes.

3.Click "OK".

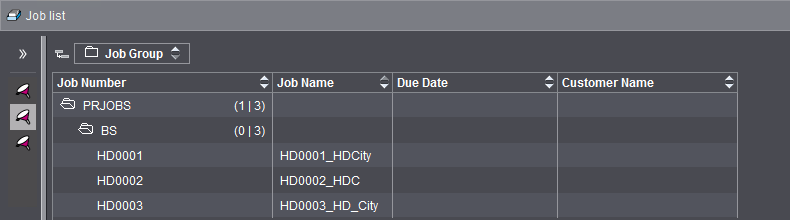

The new column set is enabled and the job view displayed accordingly. The new settings are not yet saved as a set.





4.Select "Save as" in the “Column set" list box. The following dialog displays:





5.Enter the name of your new column set, in our example, "My_Scheme" and confirm your input with "Save".

The new column set is applied and added to the list.





You can enable a different column set at any time and, when needed, return to this set.
