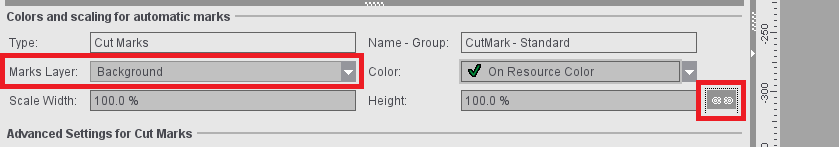

Colors and Scaling for Automatic Marks

This is where you can select which separations will be printed with marks. This is easy to do with the list box that appears as its use is self-explanatory.

Marks layer

You can place cut, fold or collating marks in the background to prevent them from covering color con­trol bars, for example.

You can select whether the mark will be printed in the foreground or background or whether it will be placed on the layer that was defined in the marks resources.

Scaling

This lets you correct the size of the marks. Normally, scaling is proportional based on the percent for width. If scaling is to be unproportional, for example, to compress the text of a text mark for reasons of space, click the button to the right of the box for height. This removes the fixed link between height and width and you can enter different values for scaling.




Set print control marks on banners (digital printing)

This requires that there is a plate template for a digital web. Can be operated using the "Banner" list box.
