You will find shipped templates for standard product parts in the "Standard" folder in "Product Parts Templates". Standard product parts have unique names.
Create a folder as described in To create a group folder for your own product part templates. Then mark the product part name in the Browser window and select Save Product Part as "Resource/Template Product Parts" ... in the context menu. The product part from an open job is saved as a template.
Default product part templates
The following default product part templates are included in the shipment:
|
Name of Product Part Template |
Description |
|---|---|
|
1up-bleed |
1up template with bleed of 3 mm |
|
1up-CAD |
1up template with bleed of 3 mm and additional margin of 5 mm |
|
1up-nobleed |
1up template with bleed of 0 mm |
|
A3-TwoUp (Readers Spread) |
Reader's Spread Template |
|
AutoExpand-Cover-F16-F8-F4-Sorting |
Template with cover, F16, F8, F4 automatic sorting ON |
|
Book-104Pages |
Imposition template with 104 Pages! Applied schemes: 6 x 8up and 1 x 4up (2 copies) |
|
DoubleWeb-56Pages |
Template for a double-width web press |
|
Montage |
Template with normal and CAD 1ups |
|
Nested-Foldingssheet |
Template for nesting of folding sheets |
|
Packaging |
Packaging template |
|
Flyer-8Pages |
Template with 8 pages (flyer)! 4up, accordion fold, 2 copies |
Simulate product code assignment
There is a way of telling, which product part template(s) will be selected for a particular product code/delivery quantity.

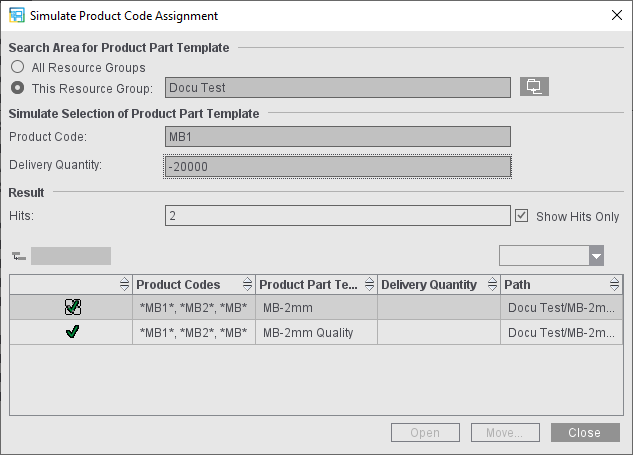

Mark a folder in "Resources > Product Part Templates" and select "Simulate Product Code Assignment..." in the context menu.
Note: When you select the root folder, all product part templates except "Standard" are included. Otherwise, all product part templates in the selected folder and its subfolders will be included.
Search Area for Product Part Template
This is where you can restrict the search range to a resource group.
•"All Resource Groups": The search will be in all product part templates in all folders (except Standard).
•"This Resource Group": The search will be in all product part templates in the selected folder and its subfolders.
Simulate Selection of Product Part Template
This function lets you test, which of the product part templates selected above will be selected for a particular product code.
To do so, enter the product code in the "Product Code:" text box (no wildcards such as *). All product part templates display when the text box is empty.
When you specify the "Delivery Quantity", the search for a suitable product part template will also consider the delivery quantity (possible input: integers, no ranges). All delivery quantities are considered when the text box is empty.
When the "Product Code" box is empty, only the delivery quantity is used as a criterion (for administration only, a product code is always present in the workflow).
Result
The number of found items as well as all selected product part templates are shown in the table. With the option "Show Hits Only", you can restrict the table to only show the found product part templates.
Important: In the field, several product parts may apply to one product code. In keeping with the sort order of the product parts within the resources (alphabetical, first single resources, then subgroups), the product part that first meets the search criteria in this sort order is selected for production.
If several hits are found (green checkmark), the product part that will be used for production is marked by a crosshair.
"Open": The Product Part Template Editor for the first selected product part template opens.
"Move": You can move the selected product part template to another location.
