Delta E

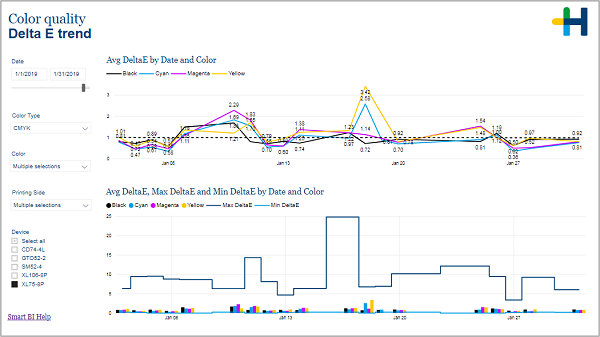

Color quality - Delta E trend

(Change language of this page to: English, Deutsch)



This page is similar to the previous page OK sheet, but shows Delta E for each color.


....

Details of the tiles

•Average Delta E by date

•Minimal, maximal and average Delta E by date and by color

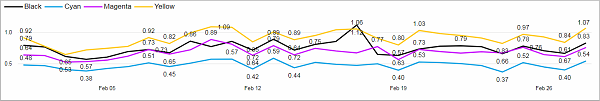

Average Delta E by date




Facts & Dimensions:

•Y-axis: Avg DeltaE

•Colors by: Color

•X-axis [date]: Date

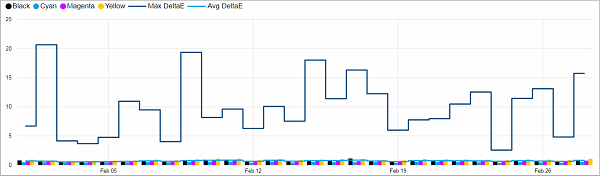

Minimal, maximal and average Delta E by date and by color




Facts & Dimensions:

•Y-axis: Avg DeltaE

•Colors by: Color

•Y-axis Dark blue line: Max DeltaE

•Y-axis Light blue line: Min DeltaE

•X-axis [date]: Date

•Drill Down => X-axis: Job Number

•Drill Down (2nd) => X-axis: Operation

•Drill Down (3rd) => X-axis: Start Time
