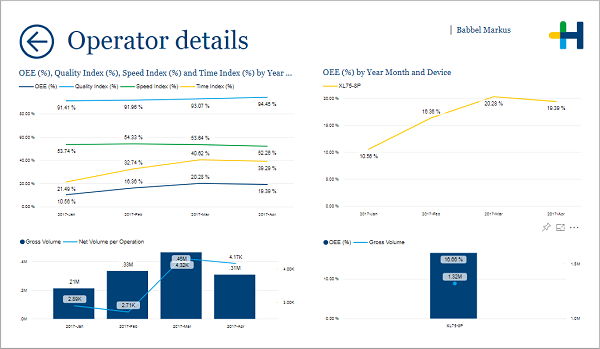

This page is accessible through drillthrough from several different pages and tiles in the report. It shows you detailed OEE results for a certain operator.
The filter adjustments for time and employee are transferred from the parent page.
In the first chart you can check the OEE and its components for each month for this operator. Below it is a chart that gives you the corresponding values for gross volume and net volume per operation.
The right half of this page deals with the different devices this operator handled. The chart above shows what results the operator achieved with different devices in each month. Below this you can see the devices with the best OEE results complemented with the gross volume that this operator produced on each machine.
OEE (%), Quality Index (%), Speed Index (%) and Time Index (%) by month
Facts & Dimensions:
•Y-axis Dark blue line [%]: OEE (%)
•Y-axis Light blue line [%]: Quality Index (%)
•Y-axis Green line [%]: Speed Index (%)
•Y-axis Yellow line [%]: Time Index (%)
•X-axis [date]: Year Month
OEE (%) by month and device
Facts & Dimensions:
•Y-axis [%]: OEE (%)
•Colors by: Device
•X-axis [date]: Year Month
Gross volume and net volume per operation
Facts & Dimensions:
•Y-axis Dark blue [units]: Gross Volume
•Y-axis (2nd) Light blue [units]: Net Volume per Operation
•X-axis [date]: Year Month
OEE (%) and gross volume
Facts & Dimensions:
•Y-axis Dark blue [%]: OEE (%)
•Y-axis (2nd) Light blue line [units]: Gross Volume
•X-axis: Device
