•Operating Time (h) by device class and time type
•Operating Time (h), Effective Processing Time (h) and Production Time (h) by device class
•Operating Time (h) by device class and time type
•Effective Processing Time (h) by month and device class
Operating Time (h) by device class and time type
This chart shows the hours of operating time for different device classes. The columns are split into the different time types: downtime, execution time and setup time.
Facts & Dimensions:
•Y-axis [h]: Operating Time (h)
•Colors by: Time type
•X-axis: Device Class
Operating Time (h), Effective Processing Time (h) and Production Time (h) by device class
This chart shows the hours of operating time, effective processing time and production time for different device classes.
Facts & Dimensions:
•Y-axis Dark blue [h]: Operating Time (h)
•Y-axis Light blue [h]: Effective Processing Time (h)
•Y-axis Green line [h]: Production Time (h)
•X-axis: Device Class

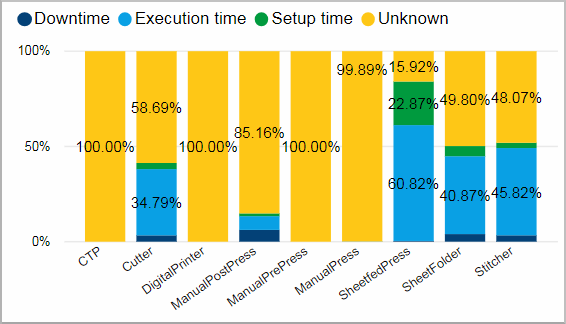

Operating Time (h) by device class and time type
This chart shows the percentage of the operating time spent in the various time types for each device class.
Facts & Dimensions:
•Y-axis [%]: Operating Time (h)
•Colors by: Time type
•X-axis: Device Class

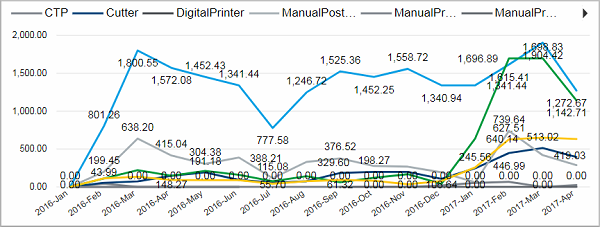

Effective Processing Time (h) by month and device class
This chart shows the course of the effective processing time by months for the different device classes.
Facts & Dimensions:
•Y-axis [h]: Effective Processing Time (h)
•Colors by: Device Class
•X-axis [date]: Year Month
