Print Test Chart

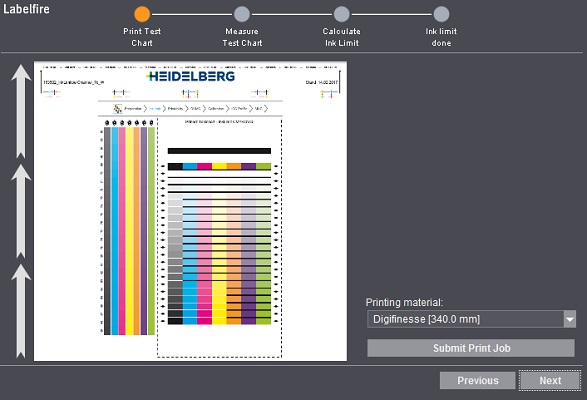

In the first step, you see a preview of the test chart. Select the printing material and click "Submit print job" to print the test chart. The test chart is submitted to the Cockpit. This process can take some time. Confirm the print job on the press.

If you have the printed test chart, click "Next".

Note: On the Primefire, you can skip printing and measuring the test chart and select your own values for ink limit instead. To do this, enable "Skip Metrological Calculation" and click "Next". In the next step, you can manually enter the ink limit for each process color.

Note: You have to select the size of the printing material only when printing for the first time. In further Prinect Color Center steps, the printing material last selected displays auto­matically, and you do not have to set it again in the list box.
