Measure Test Chart

In the second step, you measure the test chart with your measuring device. Proceed as described in the chapter Measuring Data to do this.

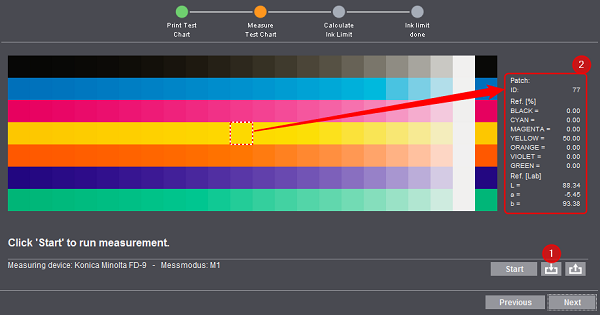

If you already measured a test chart, you can also import its results. To do this, click the button [1]

When you move the mouse over a patch after measurement, you can view the reference values for the colors and the related measurement results in the Lab color space in [2].

Click "Next" after measurement is finished.
