Labelfire Primefire
This step exists only in the Labelfire workflow. Please change the selection of the machine in the filter settings. See Filter settings.
This step checks whether the compensation of failed print nozzles is possible with the settings made for Corona and Pinning.

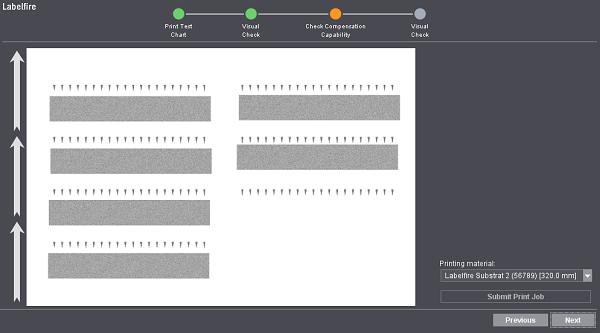

A test chart is printed for each ink used. Individual print nozzles are switched off systematically and compensated by the neighboring nozzles. If this cannot be done as intended, flashes would appear in the print image. In this case, you would have to go back to the first step and adjust the Corona and Pinning settings.
