Visual check

This step exists only in the Labelfire workflow. Please change the selection of the machine in the filter settings. See Filter settings.

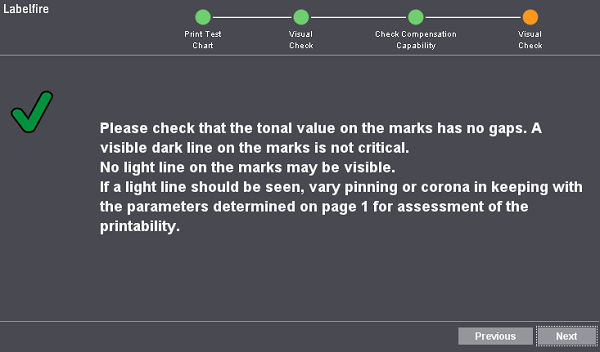

Check the test charts for flashes. These indicate that a compensation of failed nozzles is not possible with the current settings. In this case, return to the first step and make changes to Corona and Pin­ning.

Darker lines, on the other hand, indicate overcompensation. This is not a problem at this point as the calibration of the print nozzles will follow in step MNC (Missing Nozzle Compensation).



Next step (Labelfire): MNC (Missing Nozzle Compensation).
