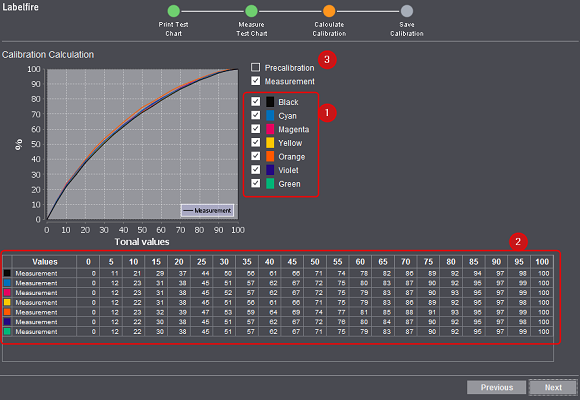

This is where the result of measurement displays in a diagram and in a table. This step is for your information only. You cannot change any values here.
In the diagram, you can see the area coverage on the x axis and the actual tonal value in percent on the y axis. The relevant curve is drawn for each color. You can show or hide each of the colors with checkmarks in [1]. In [3] you can select whether measurement and/or precalibration that was created in the "Ink Limit" step will be shown or not.
The measured values for each of the colors are entered in the table [2]. The area coverage is in the header.
Click "Next" to calculate calibration.
