For creation or modification of the output condition or for quality control, different test charts are printed and measured with a spectrophotometer.

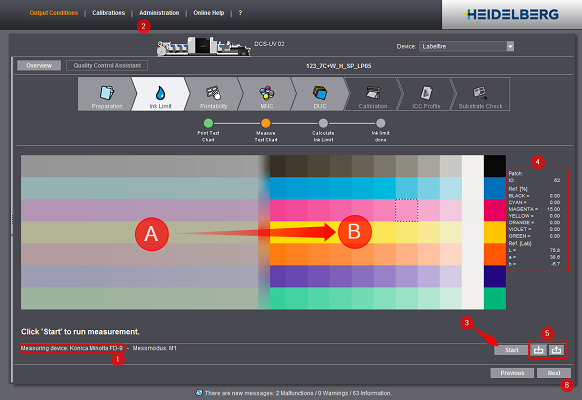

1.In [1] check whether the correct measuring device is set. If this is not the case, you can then change it in "Administration" [2].
2.Click "Start" [3].
3.Run the measurement. See Colorimeters.
The preview of the test chart is dimmed [A] if there are no measured data. The color patches are colored [B] after measurement.
4.When you move the mouse over the various patches after measurement, the related color values in screen percent and the Lab measured values display on the right [4].
5.You can export the measurement results as a txt file or import previous measurements with the "Import Measurement Data" and "Export Measurement Data" buttons [5].
6.Click "Next" [6] to go to the next step.
The next section, "Colorimeters", describes the procedure for various measuring devices.
