CMY-K Linearization Strips

'PCM 13 CMYK' and 'PCM 25 CMYK' Four-color Linearization Strips with 13 and 25 Steps

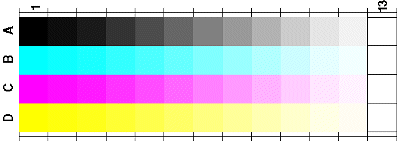

PCM 13 CMYK (MB_Process_13_CMYK)

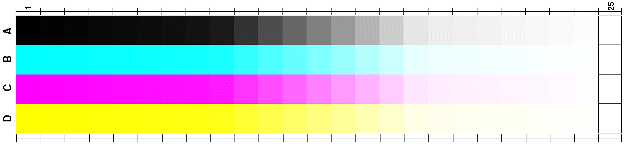

PCM 25 CMYK (MB_Process_25_CMYK)

Advantages

•Linearization strips for creating and checking print and proof calibrations

•PCM 13 CMYK: CMY-K 13 steps with

·0% and 5%

·10% steps between 10% and 90%

·95% and 100%

•PCM 25 CMYK: CMY-K 25 steps with

·1% steps between 0% and 7%

·10% steps between 10% and 90%

·1% steps between 93% and 100%

•Manual measuring of four times 13 or four times 25 patches is fast and simple

•Automatic measurement with Image Control is possible.

Recommended for

•creating and checking calibrations.

'MB_Process_13' and 'MB_Process_25' Single-color Lineariza­tion Strips with 13 and 25 Steps

MB_Process_13

MB_Process_25

Advantages

•Linearization strips for creating and checking film and plate calibrations

•MB_Process_13: CMY-K 13 steps with

·0% and 5%

·10% steps between 10% and 90%

·95% and 100%

•MB_Process_25: CMY-K 25 steps with

·1% steps between 0% and 7%

·10% steps between 10% and 90%

·1% steps between 93% and 100%

•Manual measuring of 13 or 25 steps is fast and simple

•Automatic measurement with Image Control is possible.

Recommended for

•creating and checking calibrations.

'HDM_Inkjet' Linearization Strips

Two versions of the "HDM_Inkjet" linearization strip were created especially for digital web presses like Gallus Labelfire 340: CMYK with four rows with 22 patches each and CMYKOV (orange, violet) with six rows with 22 patches each. The linearization strip is also printed on the press and for that reason is found in Color Toolbox only as a reference file (can be selected directly in "New measurement file > Linearization strip").

Note: With updates, you might have to first enable "HDM_Inkjet" in the preferences in "Test­chart", "Linearization strip" tab.
