Product Step
The "Product" step shows you all operations relating to the whole product. This includes, for example, binding with a saddlestitcher. In addition, you can view a list with the products of a job. You have several products, for example, in jobs with versioning.
|
|
Product list You go to the list of products by clicking the product icon. It shows you each of the products that are part of the final product. For example, a booklet with several languages consists of several language versions. |
|
|
Operations list The operations list shows all operations related to a final product. Select this view using the operations icon. |
"Planning" button
Use this to open the Planning Assistant. This is where you can reschedule an entire job. For details, see Planning Assistant
When an operation is selected, the “Properties” button opens a view with tabs showing the properties of the operation.
"Properties" Tab
This shows you the planned quantity and planned waste for the selected operation.
"Default data" tab
Prerequisite: The finishing machine must have been created at the CDM and the job must be started in order to view the default data.
The parameters displayed let you check whether default data are available or not. It is not possible to edit the values; this is done by Prinect Signa Station.

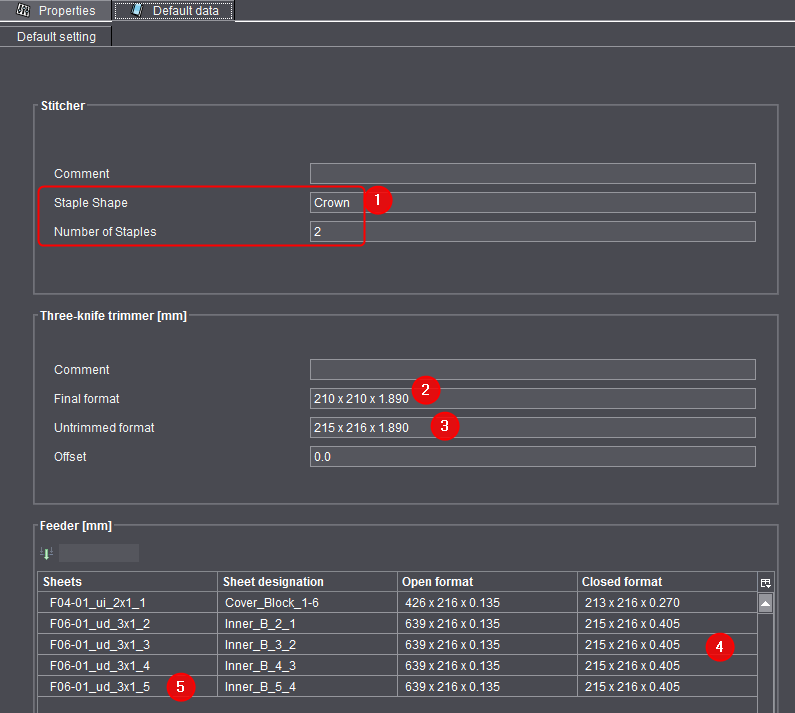

Default data for saddlestitchers
When a operation is selected, the default data below display for checking purposes.
•Shape and number of staples (1)
•Final format of the product (2)
•Untrimmed size of the product (3)
•Closed size (4)
•Folded sheets in the order of the feeder (5)
Default data for folder-gluers
When a operation is selected, the default data below display for checking purposes.
•Article number (1)
•Carton type with its dimensions (2)
•Carton preview with its dimensions (3)
