Configuring the "Workplace Interface" data storage device on the Prinect Press Center
1.Carry out the following steps on the printing press (Prinect Press Center) in accordance with the software version:
|
CDM devices |
Prinect Press Center (attribute 1 or 2 is displayed, depending on the version) |
|---|---|
|
Workplace ID |
1. WP_Id1 2. WorkplaceId |
|
Name of the Prinect server |
1. WPI_IP_Addr1 2. Server |
Overview of the attribute assignments depending on the Prinect Press Center version

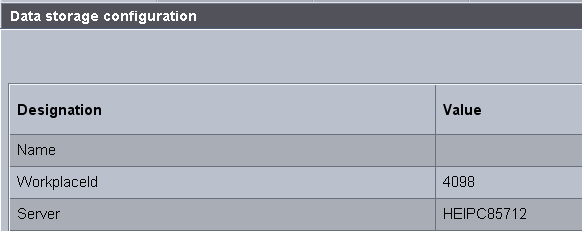

2.Enter the desired data storage device designation in the "Name" field. The name "Workplace Interface" remains if you do not enter anything in the box.
3.In the "WorkplaceId"/"WP_Id1" field, enter the number that you previously entered for the "Workplace ID" in the Prinect Integration Manager/Prinect Pressroom Manager.
The attribute "WorkplaceId"/"WP_Id1" uniquely identifies the press in the Prinect Integration Manager/Prinect Pressroom Manager at a later time.
4.Enter the designation of the Prinect server in the "Server"/"WPI_IP_Addr1" field.
The connection to the Prinect Integration Manager/Prinect Pressroom Manager should now be established.
Synchronization of the PDC configuration with the press
After having set up the press, you must perform a synchronization between the PDC configuration and the Prinect Press Center (see Synchronization of the PDC configuration with the press).
Configuring the color data export on Prinect Press Center (only when Prinect Axis Control II / Prinect Inpress Control is connected)
More details on how to configure the color data export can be found in Configuring color data export on the Prinect Press Center.
