Administration - Instructions

Instructions

Procedure instructions provide the user with important information about certain operations that dis­play directly on the control panel of the press (Press Center). If necessary, a certain setup of the press (tape inserter must be brought near the press) can be demanded by a procedure instruction. These procedure instructions describe the specific and necessary steps that are assigned to an operation.

Examples for possible procedure instructions:

•Proof: The customer has ordered a proof for the job; the press operator must archive a sheet.

•Tape inserter: The user needs the instruction to enable the tape inserter, including the informa­tion about how many sheets before a tape will be inserted (e.g. after every 100 sheets).

•Next Day: Express production.

•Complaint: The job is reprinted in higher quality because of a customer complaint.

Note: The instructions are assigned to operations by creating codes when you define instructions. A new column, "Procedure Instructions", was introduced to point out existing procedure instructions in the operation tables of the press and finishing steps. The codes for the procedure instructions display in this column. The complete procedure instructions display as a tooltip when you let the mouse hover over a table cell.

Create an Instruction Template

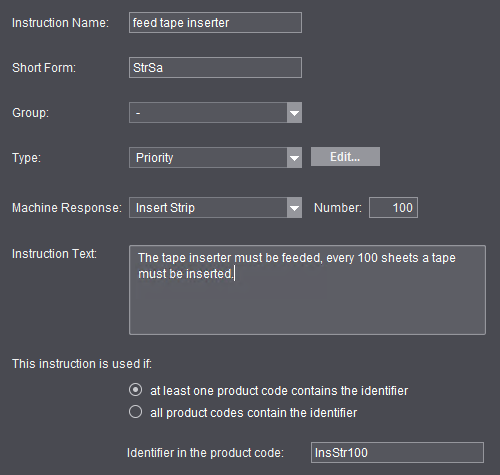

1.Click the "New Instruction" button. The parameters for definition of the instruction template dis­play on the right of the window.

2.Type an informative name in "Instruction Name".

3.Give the instruction a code (Short Form). The code identifies the instruction template in the Pri­nect Manager. That is why the code for each instruction must be unique in the Prinect Manager system environment. It may consist of a maximum of 5 characters (digits and special characters are permitted).

A code (Short Form) is mandatory for each instruction. An instruction cannot be saved without a code.

4.In the "Group" list box, you can select one of the available instruction groups and, by doing so, assign the instruction template to this group. See Groups.

5.In the "Type" list box, select the type of procedure instruction. By assigning them to a type, you can categorize procedure instructions and, by doing so, give users a note on what type of instruction it is. You can define new types with "Edit".

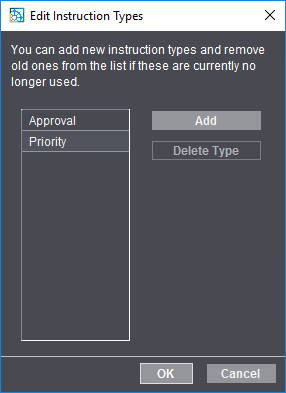

6.You can create a new instruction type with "Add". In the "Create new instruction" dialog, you can give the instruction type any name desired.

Assign Procedure Instructions to a Print Job

The procedure instructions defined in "Administration > Instructions" are first of all templates that the Prinect system makes available generally. Concrete instructions are generated from these templates when one or more templates are assigned to a print job.

Product Code

The product code is the key to assigning procedure instructions to a print job. A product code can already be in a job before it gets to the Prinect Manager (for example, from a web shop or from Prinect Signa Station) or it can be defined or edited in the job settings in the Prinect Cockpit in "Product Des­cription". See Product Code.

An instruction template has an identifier so that a procedure instruction can be assigned to a job. This is a string that is entered in "Identifier in the product code". This identifier must be part of the product code. Then the procedure instruction identified in this way is assigned to the relevant job.

Note: You can subsequently edit the product code of a job that already is in the Prinect Manager in "Product Description" to be able to assign one or more procedure instructions to the job by inserting the appropriate identifier(s).

Selection criteria

If the product code of a job has the identifiers of several procedure instructions, you can control selection of the instructions to be applied to the job in different ways:

•by selecting one of the options for "This instruction is used if"

•by grouping instructions and their order of priority within a group.

"This instruction is used if"

Selection of this option is designed for the case that several elements (e.g. segments) with different product codes are found on one press sheet.

•If "at least one product code contains the identifier" is selected, the instruction is assigned to the whole sheet if at least one product code contains the identifier of the instruction.

•If "all product codes contain the identifier" is enabled, the instruction is assigned to the whole sheet if all the product codes on the sheet contain the identifier of the instruction.

This selection does not affect application of the instruction if the sheets do not have any elements with different product codes.

Groups

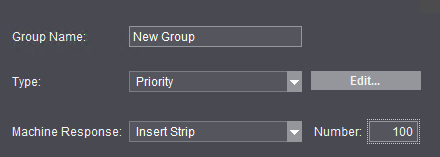

You can define a group of instructions with the "New Group" button. In a group, you can combine sev­eral instructions of the same type and with the same machine response.

1.Give the group an informative, unique name.

2.Select the type for the instructions within the group (or define a new type).

3.Select the machine response. No machine response will be defined if you select "None". If you select "Insert Strip", you must specify in "Number" after how many printed sheets a strip will be inserted. For example, a strip will be inserted after every 100 sheets if you enter "100".

Note: The "Type" and "Machine Response" parameters are applied to all instruction tem­plates that are assigned to this group. That is why these parameters are dimmed in the set­tings for the instructions within a group.

4.Confirm definition of the group by clicking "Save".

Add a procedure instruction to a group

You can add a procedure instruction to a group in the following way:

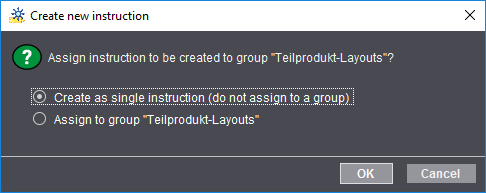

•In the list of instructions, mark the group to which the new instruction will be added and click "New Instruction". The following dialog displays:

Select "Assign to group '...' " and confirm with "OK".

The "Type" and "Machine Response" options cannot be used in the settings of the new instruc­tion because these parameters are taken from the group settings.

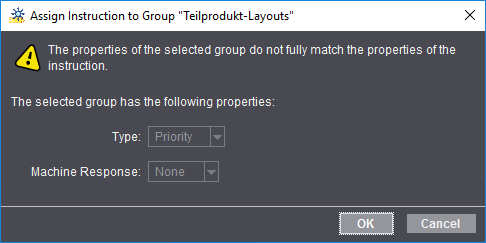

•If no group is marked in the list of instructions when you click "New Instruction", you can assign the new instruction subsequently to a group by selecting the group you want in the "Group" list box. The following dialog displays if the "Type" and/or "Machine Response" parameters have dif­ferent data to the group settings:

When you confirm with "OK", these parameters are taken from the group settings and the new procedure instruction is assigned to the selected group.

Move a procedure instruction to another group

•If several groups are defined, you can move procedure instructions to a different group by select­ing the new group in the "Group" list box. The following dialog displays if the "Type" and/or "Machine Response" parameters have different data to the settings of the previous group:

Order of priority within a group

You can apply only one procedure instruction within a group of procedure instructions to a job. If the product code of a job has the identifiers of several instructions belonging to one joint group, you must decide on which instruction will be assigned to the job. This selection is made by the order of priority of the instructions within a group.

The higher up an instruction is in the list, the higher its priority for being assigned to a job if there are several instruction identifiers in the product code of the job.

Example:

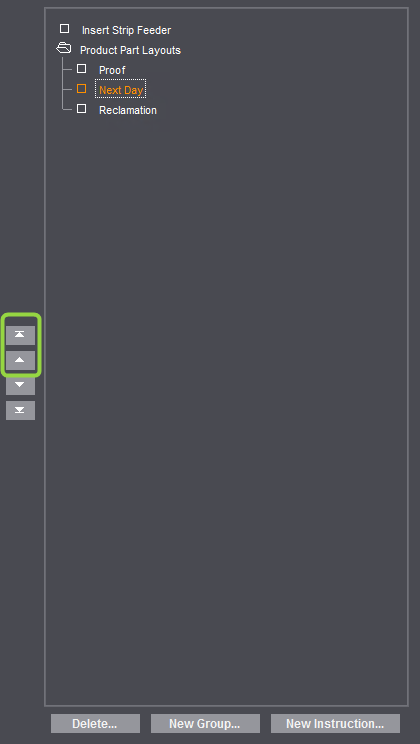

Three instructions are defined within the "Product Part Layouts" group:

•"Proof"

•"Next Day"

•"Complaint"

In this example, the "Proof" instruction would be given priority, then the "Next Day" instruction, etc.

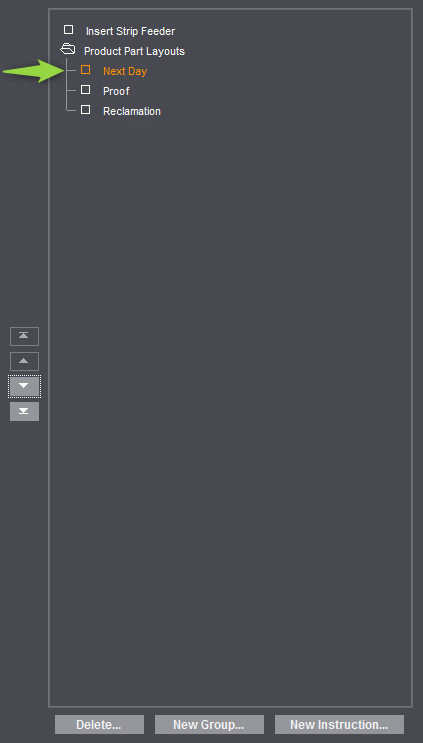

Because "Next Day" is more urgent than the other instructions, it will have prior use. For this to hap­pen, you must move it with the arrow buttons to the topmost position:

The other instructions in the group will now only be used in a job if the product codes do not have the identifier of the "Next Day" instruction.

End the setup with "Save".

Note: Procedure instructions are generated automatically, based on the product code of the job during an MIS import and when rescheduling with the Planning Assistant.

If the product code is changed in the job settings after the import, the procedure instructions and their assignment to the operations are recalculated. The currently defined procedure instructions templates are used for this.

Delete Instruction Templates or Groups

You can delete instruction templates or groups by marking the relevant element in the list and clicking "Delete".
