Assemble_pages

Icon_o_symbol_smontage

Launch "Assemble Pages" by clicking the icon shown to the left in the toolbar or selecting "Plug-Ins > Prinect > Assemble Pages" in the menu.

Assemble Pages lets you assemble several PDF pages and, where applicable, CFF2 files to one PDF page. This can be useful, for example, if you wish to add missing elements (e.g. marks or text), place elements (e.g. newspaper ads) on free spaces or use versioning with different languages. There is also the option of assembling multiple-page PDFs to a single page. In this process, the single page is copied automatically for each page of the multiple-page document.

This section first describes all possible settings of the plug-in. Some practical examples are given after this section.

You must have at least two pages open at the same time to be able to work with Assemble Pages.

Prerequisite: The "Assemble Pages" license is needed to work with it.

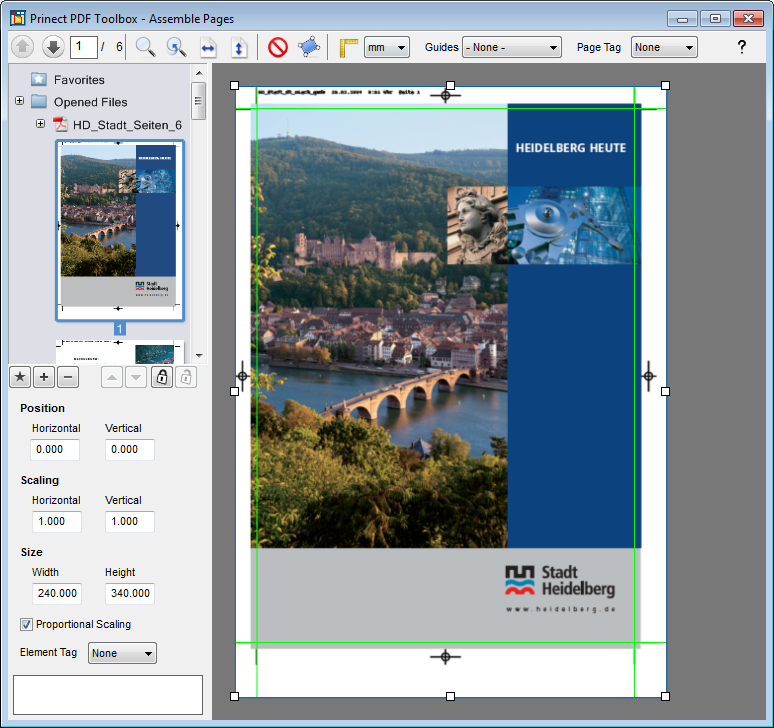

Overview

Twst_o_smontage1

Left column

•File selection
This is where you select the pages that are to be assembled. To do this, simply drag a page from the preview to the open page and correct the position.

		Use this to add documents to the Favorites. This is a good idea for pages that you want to use more often, for example, a custom logo.
		These let you add documents or delete selected documents (except the initial file that must stay open).
		With this function, you can select positioned pages (elements) in a document one after the other; the respective pages (elements) are identified with frames. This lets you easily check each of the positions (without having to click in the document).
		Use this to lock placed elements so that they no longer can be moved inadvertently. The right button lets you unlock the elements again.

•Position
Specify the way the added page will be positioned in the "Position" group. You can define the vertical as well as the horizontal position.

•Scaling
This is where you enter the scaling factor of each selected object in horizontal and vertical direction.
You must disable "Proportional Scaling" if you want the horizontal and vertical directions to have different scales.

•Size
This is where you check or edit the size of a single selected object.

•Proportional Scaling
When the check box is enabled, the proportion between width and height stays constant when you change the size or during scaling.

•Element Tag
This lets you tag an object with an identifier that becomes effective in Prinect digital printing when printing on certain presses. Objects that were assigned a "Security" tag are not changed by color management. The color data stay as they are and undergo special screening.
The colors of objects with "Register" as the tag also stay as they are, but only if the maximum area coverage is not exceeded as a result.
See also Security Tags.

Tool bar

In the toolbar at the top, you will find various functions that let you rotate, insert or delete objects and fit the view.

The following controls are possible:

	Previous page / Next page These buttons let you go back and forth between the various pages of the open document.
	Zoom In Scale up the view or scale down using Ctrl key as well
	Previous View Return to the previous view
	Fit the width Fit view to the width
	Fit Height Fit view to the height
	Delete Delete the currently selected element. Alternatively, you can delete the element also with the appropriate function in the context menu or with the "Del" key.
	Rotate "Rotate" lets you rotate the element. You will also find this function in the context menu. Mark one or more objects and click this button. A box surrounding the objects displays. Click a corner point and drag it with the mouse. The content of the box is jointly rotated, with the diagonally opposite corner point as the pivot. You can only rotate step-by-step (step size = 5°) if you keep the Shift key pressed during rotation.
	Tape measure With the tape measure (ruler) you can quickly determine the dimensions of objects and angles. Click the starting point of the length you would like to measure. Hold down the mouse button and move the mouse to the end of the length. You can see the distance (and the angle of the line to the horizontal) directly. Keep the Shift key pressed down to measure only horizontal or vertical lengths. You can choose the following units: mm, points, inch, cm

•"Guides" list box
You can show guides to make the correct placement of elements easier for you. In the list box, you can set "None", "Default" or custom guides. See Guides.

•"Page Tag" list box
This is where you can assign the "Security" or "Register" tag to the whole page. See Security Tags.

•"?" button
Use this to open the Online Help.
