"Fillet/chamfer" mode






"Fillet"





"Chamfer"

There are two modes of editing corners: Fillet  and  Chamfer (Label Pro)  .
To toggle between the modes, keep the mouse button pressed over the button currently displayed in the toolbar. Then release the mouse button when the pointer is on the desired button.

Fillet





"Fillet"

In the "Fillet" mode, you can round the intersecting angle of two lines (or arcs) with an arc.






The following edit bar belongs to the mode:






Controls in the "Fillet" Mode

Radius

Radius of the fillet arc



Drawing Fillets

1.Click the "Fillet" button.

2.Click consecutively on the two objects between which you want to form a fillet or click directly on a vertex point, if you are featuring two intersecting lines. Prinect Signa Station Packaging Pro & Label Pro will display a preview of the would-be fillet, following the motion of the mouse as you drag.

3.There are two ways to finish the arc:

·Move the mouse and click when the arc has reached the desired position.

·Enter the desired radius value in the context-sensitive edit bar and press "Enter" to draw the fillet with this radius.

4.The resulting object is a regular arc.



 Chamfer (Label Pro)


Prerequisite: This function is contained in Prinect Label Pro.





"Chamfer"

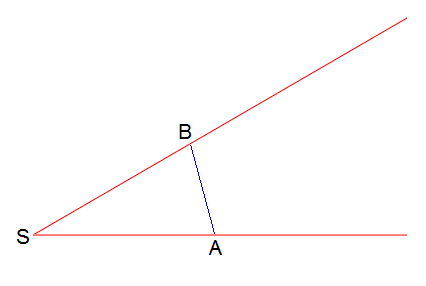

In the "Chamfer" mode, you can insert a straight line AB between two intersecting lines in order to chamfer the corner. A identifies the start point, B the end point of the line, and S the intersecting point of both lines.






The following edit bar belongs to the mode:




Controls in the "Chamfer" Mode

Angle

Angle between the distance AB and the line clicked first.

Distance A

Distance of point A on the first line to intersecting point S.

Distance B

Distance of point B on the second line to intersecting point S.



Drawing chamfers

1.Click the "Chamfer" button.

2.Click consecutively on the two lines between which you want to form a chamfer or click directly on a corner. Prinect Signa Station Packaging Pro & Label Pro will display a preview of the would-be chamfer, following the motion of the mouse as you drag.

3.In the edit bar, you can set individual properties of the chamfer and confirm with the "Enter" key.

4.After a mouse click, the new line AB is created, and the lines AS and BS are trimmed.





Back to Tool Bar in the "1up" Tab.

Back to Tool Bar in the "1up" Tab.
