Advanced Settings for Sheet Optimization

The "Advanced Settings" button lets you invoke all additional settings like the ones also available in the "Sheet Optimization Setup Editor" for creating templates. The "Sheet Optimization Setup" is divided into the "General", "Geometry", "Cost" and "Rating" tabs.

Changes in this dialog are implemented directly. In other words, the values entered are applied immediately without confirmation through the OK button. The dialog must be exited with "OK" if the values are to be kept. The changes are discarded if you exit the dialog with "Cancel" or with the "Close" icon.

"General" Tab

Use Optimization Parameters from Plate Template

The optimization parameters from the "Plate Template" and "Papers (Printing Materials)" resources are used and display accordingly when you enable this option. If a number of plate templates or papers are set in your job, proceed as follows:

•Plate templates

The values in each parameter are checked for validity in all plate templates defined in the job and compared with each other. If the values from all the plate templates are valid and identical, the same value displays in the relevant box.
If a value is invalid or different, the word "various" displays in the box instead of a value.
The tooltip of the box also shows all different values of the parameter.

You cannot edit the values.

The value from the job data displays if there are no plate templates.

•Papers

The values in each parameter are checked in all papers to see that they are available. If a value is set each paper, one of these values is used during optimization. To make this clear, the value in the box is blue. However, the value shown is not used for optimization.
If a value is missing in one or more papers, an existing value displays in the standard color in the box and is used if the paper provides the best optimization result.
The tooltip of the box also shows all different values of the parameter.

You can edit the values. Edited parameters are not kept in the paper entered in the plate template but in the job data.

Note: You can set the quality criteria in the "Rating" tab for a specific job even if the optimization parameters from the plate template are used and use them for optimization.

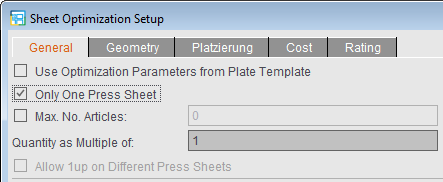

Only One Press Sheet

Exactly one good press sheet is generated during optimization. After you save your data, gang parts that are not placed are returned automatically to the pool for gang jobs.

Max. No. Articles

The "Max. No. Articles" box lets you restrict the number of articles on the press sheets to take into account restrictions in finishing (e.g. sorting equipment with a limited number of trays). When you enable the option, the box first displays '10' by default. You can then match this value to suit your needs.

When the number of articles to be placed is greater than the maximum number you defined, the articles are split into partitions, optimization is calculated separately for each partition and finally these single results are added together. For example, for 20 articles and a limitation to five articles, this produces four press sheets each with five articles instead of one press sheet with 20 articles.

Quantity as Multiple of

The quantity is to be a multiple of the number entered in this box. The quantity can be less than this value in the case of an odd number of remaining copies.

Overproduction

You can enter a percentage for overproduction in this box if the calculated overproduction for a job was not specified.

Allow 1up on Different Press Sheets

A check is run to see whether a better result can be obtained by placing the same 1up on different press sheets.

Note: This option is not available if segments are used in sheet optimization.

Press Sheet Allowance

Allowance for the press sheet quantity, either as a fixed value (base) and/or as a percentage.

For example, waste allowance for finishing

1up Allowance

Allowance for the 1ups/gang job objects; the delivery quantity is taken as the basis.

Include Separations

Optimization with "Include Separations" gives you only press sheets where the placed documents of a press sheet do not have more colors in total than available printing units. This makes it possible to avoid multiple runs (for details, see Include Separations).

Slider for less plates / less sheets

The slider lets you weight the priority, in other words whether less plates or less press sheets will be used. The digits only portray the weighting for the algorithm and are not important otherwise.

Note: The slider does not necessarily improve optimization in every job. In some cases, the result is identical.

"Geometry" tab

Note: The geometry data are not read from the MDS but you must define them yourself in this tab.

Left Margin / Right Margin / Top Margin / Bottom Margin

By defining these margins, you create a bounding box within which the 1ups can be positioned. If you leave the default values of "0" as they are, the bounding box is the same size as the paper. By entering values for the margins, you shrink the size of the bounding box accordingly.

If you set marks at the left, right and top, you must set a margin for these marks.

1up Block Margin

Spacing between the folding sheets/assembly blocks. You must set the value to "0" for a separating cut.

Sheet Brake Total

In optimization, you can reserve spaces on the sheet for any sheet brakes that may be required. You can set up to 12 sheet brakes.

The standard width of a sheet brake is 7 mm. In addition to this value, one or two standard trims are kept free so that no trim juts into the sheet brake.

In case of 2 or more sheet brakes, one brake each is expected on the left and right margin respectively; should the space be insufficient, it will be expanded internally

For single surfaces, sheet brakes do not require any free space and for that reason are ignored by Prinect Signa Station. For this reason, you could also use parameter sets with sheet brakes for single surfaces

There is no horizontal centering for (effective) sheet brakes because otherwise the positions of the free spaces would be unpredictable.

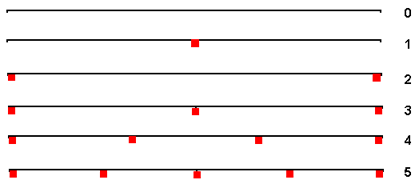

Schematic view of assumed positions for 0-5 sheet brakes:

Note: For "Single-sided work-and-turn", the meanings of left and right margin apply analogously to the sheet halves. This may also result in increased margins because of the sheet brakes to consider. A peculiar situation arises with even sheet counts of 4 and more since a smaller strip is formed on the sheet half.

Horizontal lanes/width/height

In addition to the number of sheet brakes, you can also set their width and the number and width of the horizontal empty areas (lanes).

The sheet brakes and the horizontal lanes must always cover the entire height and/or entire width of the press sheet. That is why the number is interdependent. An appropriate lock is integrated into the graphic user interface and described as a tooltip.

If one or more than 2 sheet brakes are selected, these are centered on the press sheet. In this case, only the values of '0' or '2' can be selected for the horizontal lanes. Accordingly, it is vice versa if the number of horizontal lanes is first entered.

"Placement" tab

For "Sheet Optimization without Layout Default", you can also define the placement, that is, the starting point as of which the gang parts are aligned on the press sheet.

With the first cut opposite the lay edge, normally as many elements as possible are to be cut. This variable setting option makes sure that you can match optimization to suit your needs.

During optimization, the assembly blocks are grouped by size. Assembly blocks of the same size placed side by side make up what is known as a "ribbon". If possible, the bigger assembly blocks are always positioned more to the left. Positioning normally begins at the bottom left. If needed, you can change the starting point for optimization in horizontal and vertical direction.

Primary placement direction

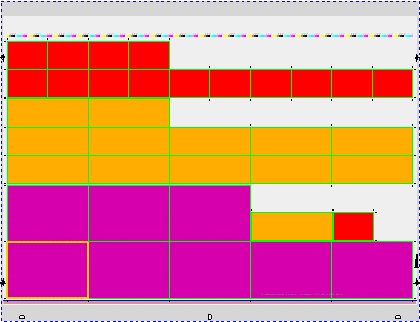

"Horizontal": Sheet optimization is in horizontal ribbons. They always fill the entire space between the margins before a new ribbon begins.

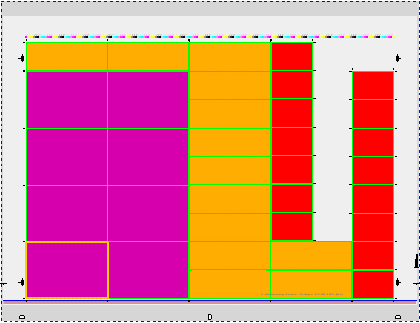

"Vertical": Sheet optimization is in vertical ribbons. They always fill the entire space between the margins before a new ribbon begins.

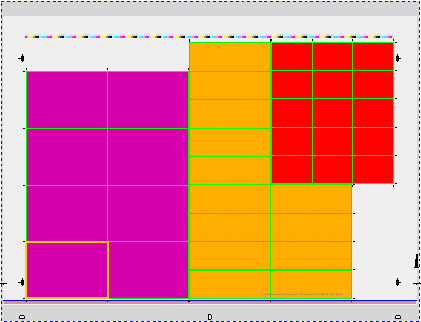

"General": Sheet optimization is in rectangles (or rectangular ribbons). In other words, assembly blocks of the same size are grouped together to form rectangles if possible. In most cases, the rectangular ribbons don't fill the entire space between the margins.

"Cost" tab

Is equivalent to the cost data for sheet optimization (see Cost Data for Sheet Optimization) with an additional input option for the press for hourly rate and performance (sheets per hour).

Note: The cost data are not read from the MDS but you must define them yourself in this tab.

"Rating" Tab

You can define one or more rating criteria for the press sheets depending on your individual requirements by clicking the plus button. The results of these quality criteria display in the "Results" step in the table in "Optimization Result" and in the HTML report.

Area Use	Utilization of the area on a press sheet In other words, how much sheet surface is not used and means waste in production. "Area Use" is set by default when you first open the settings and for jobs from predecessor versions.
Volume Use	Volume Use refers to the press sheet stack This means: Usage in the stack is also taken into account besides the area use (see above). In this case, the total number of press sheets produced is compared with the delivery quantities of the single articles, in this way calculating the share of unpaid overproduction that results from articles with a lower production quantity being placed on the sheet.	Can be filtered by sheet quantity: the criterion is applied only to sheet quantities within the set range. See Edit Sheet Quantities/Delivery Quantities for details
Back Use	Percentage of the back in relation to the front, in other words to the area utilized This means: If all fronts have a back (or all none), the back use is 100%, even if the area utilized is only, for example, 70%.
Date	Assessment of the press sheets based on a uniform target date. "Oldest Target Date" refers to the date furthest back in the past or to the next date in the future.	You can define a period (Oldest Target Date + x days) using the button with the three dots.
Multiple 1ups	The rating for multiple 1ups is 100% if each article is placed just once only.	Can be filtered by delivery quantity: the criterion is applied only to placed 1ups with a delivery quantity within the set range. For example, you might not want multiple 1ups for small delivery quantities but would like to allow multiple 1ups for large delivery quantities on the same press sheet. See Edit Sheet Quantities/Delivery Quantities for details

Note: With a sheet optimization setup generated with Prinect Signa Station version 2020, "Date Spreading" (number of days that may lie between the single jobs at the most) may also be available as a criterion. This was replaced by "Date" in version 2020.10.

	When you click the plus button, a rating criterion is enabled and you can customize it. You can create a number of different criteria.
	For criteria with a filter option, you can also create several criteria of the same type, for example, to define a different action for various sheet quantities or delivery quantities.
	When you click the trashcan button, the rating criterion is disabled and removed.
	You can weight the criteria from "Very low" to "Very high". During calculation, this status decides on how much weighting will be given to the rating criterion during optimization. In the results, this does not change the single result shown in each of the columns but the overall result for the sheet.
	The "Veto" option does not change the status of a rating criterion but refers to the "traffic light" shown. For example, if a veto value is "red", then the overall result also displayed is "red".

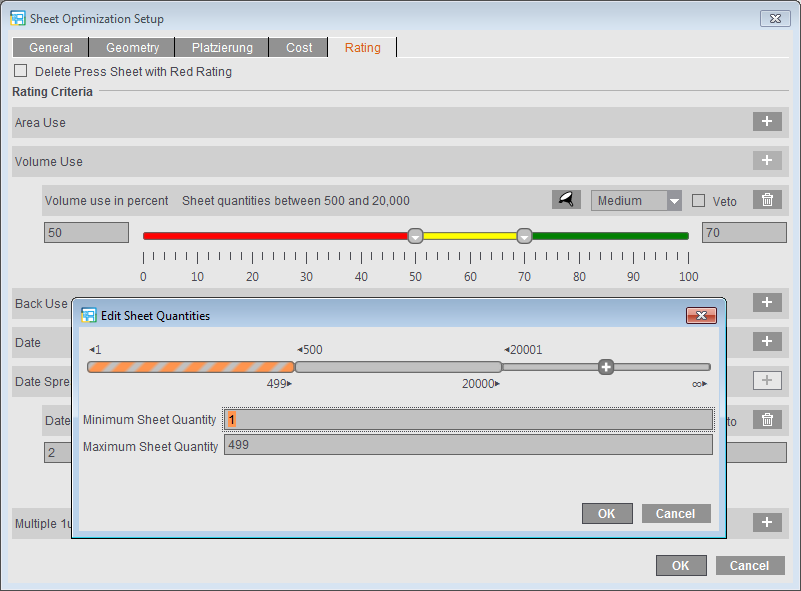

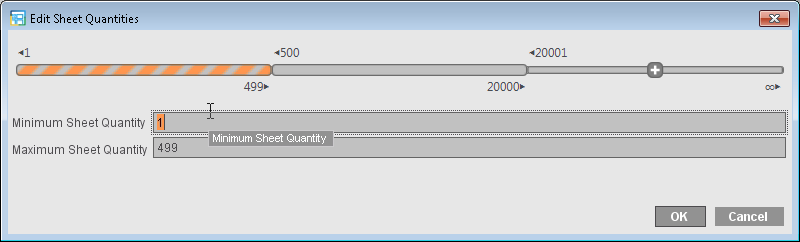

	Edit Sheet Quantities/Delivery Quantities When you add a "Volume Use" or "Multiple 1ups" rating criterion, the "Edit Sheet Quantities" or "Edit Delivery Quantities" dialog opens automatically. If the minimum value set is "1" and the box for the maximum value is left empty, then the criterion is valid for the whole range, irrespective of the production quantity/delivery quantity. In this case, you cannot create another criterion of this type. The set range is hatched. If only a certain range is set, e.g. a volume ranging from 500 to 20000, you can specify other criteria of this type for the remaining ranges by clicking the plus button again. When it opens, the dialog then shows the range with a set criterion and you can no longer link this with the new criterion. The ranges not yet linked to a criterion are indicated by a plus sign. Within the ranges not yet used, you can select subranges for the new criterion by entering a minimum and maximum value or for the whole range by clicking the plus button. When you click the filter icon in a criterion, the "Edit Sheet Quantities" or "Edit Delivery Quantities" dialog also opens and shows the hatched range set for this criterion.

In the "Rating" tab, you can set thresholds for a "yellow" traffic light state and a "red" traffic light state.

The slider has two handles, only one of which can be active at a time. The active handle is highlighted by a colored border. A handle becomes active by moving it, by a click on it or a click in the relevant text box.

In addition to moving the active handle, you can change its position by clicking somewhere on the slider.

Use the left handle to change the threshold for the red state and the right handle to change the threshold for the yellow state.

The positions of the slider and the values in the text boxes correspond to each other.

Rating results

Note: For Sheet Optimization without Layout Default, the percentage for the rating result refers to the whole press sheet. For Sheet Optimization with Layout Default and Sheet Optimization for Packaging, the percentage refers to the default layout or cutting die. In other words, a completely filled layout produces, for example, an area utilization of 100% even if the whole press sheet was not used. This rating, varying according to optimization type, is applicable for all quality criteria except for date spreading.

The traffic light position and the values display in the press sheet lists of the HTML report and in the "Results" step. The "Rating" in the report is equivalent to the overall rating that is calculated from all defined rating criteria according to the degree of their weighting.

The results for each single quality criterion defined also display in the press sheet list and in the report. The "Multiple 1ups" column can display several times if the criterion is defined for different delivery quantities. The "Volume Use" criterion can also be defined several times (for different sheet quantities), but it always only displays once (volume use matching the optimized sheet).

Display in the "Results" step in the press sheet list:

Note: To view the criteria in the report, you must add the criteria to the table of the press sheet list with "Select Columns". In this case, only the columns where criteria are also enabled display.

Display in the HTML report:

Delete Press Sheet with Red Rating

If "Delete Press Sheet with Red Rating" is enabled, press sheets that are below the left threshold, i.e. in the red, are removed automatically from the gang job.

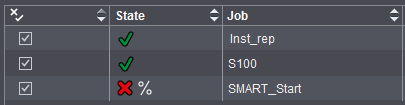

During optimization, a warning message is issued and the removed jobs are highlighted accordingly in the "Results" step in the "State" column in the 1up list:
