Automarks sets for press sheets
Marks relating to press sheets can be set in the plate template. If such a place template is used in the job, the marks in it are applied to the generated press sheet. In this process, however, it is not possible to specify which marks depending on certain parameters are really to be placed and which are not. All the marks are always applied to the press sheet.
This results in different plate templates having to be created and used for different setups (e.g. schemes used).
If "Use Automarks Set" is selected in the "Marks" tab in the plate template, either the automarks set that was set in the Preferences in "Resources" is applied to the job when you use this plate template or you manually select a different automarks set for this plate template.
If there are already manually placed marks, you can select whether these are to be applied when switching to automarks sets and be converted to press sheet labels. The settings already made for these marks are applied and the marks can be given rules in addition to that.
As a result, the press sheet-related marks are placed in the way that they are set in the press sheet automarks set. This means that these marks are not always placed but depending on rules, for example, for certain customers or in different positions depending on the product part.
Information regarding possible settings for Automarks Set Press Sheet:
Colors and Scaling for Automatic Marks
Confine to Press Sheets (Controlling with Rules)
Automatically Placed Print Control Marks

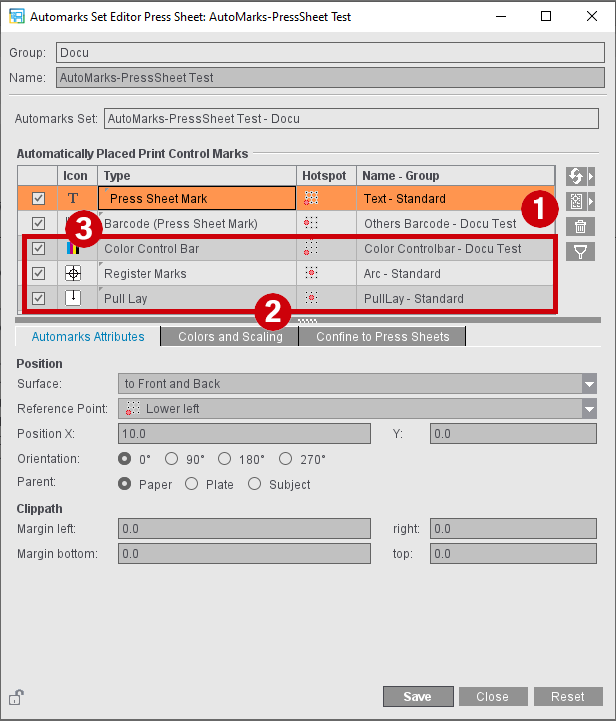

In addition to any number of press sheet labels (1), the "Automarks Set Press Sheet" can also contain the color control bar, register marks and the pull lay (2).
|
Replace the selected automarks set in the current plate template by another automarks set from the Resources |
|
Replace the selected mark by another one. The selected mark is overwritten. |
|
Insert another press sheet label |
|
Remove the selected mark from the list |
|
Filter the list: only the enabled marks display. |
