In this step, the test charts will be printed that you will visually assess or measure in the next step.
The number of printed test charts depends on the machine that you use and whether you are running the application in the normal or expert mode. See General settings: Expert Mode.
In the normal mode, for example, only the "Multicolor Quality Check" test chart is to be measured for the Labelfire. In the expert mode, there is also an additional test chart for checking the homogeneity.

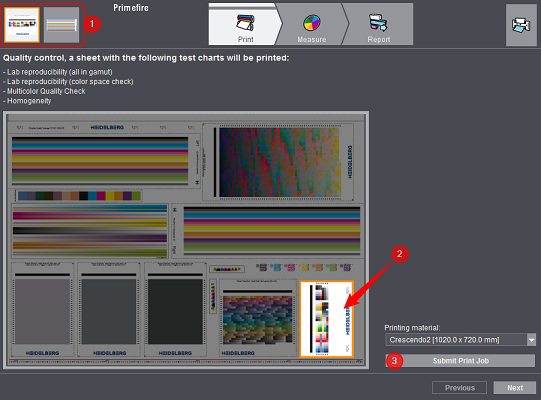

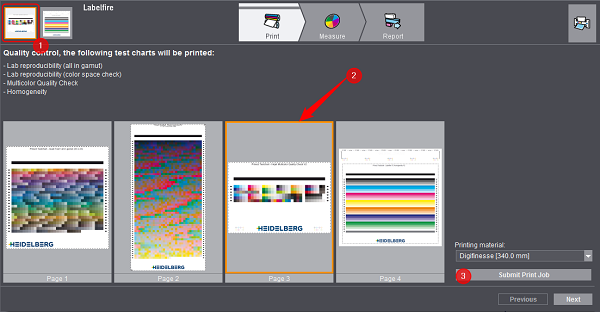

The thumbnail [1] in the top left corner helps you to identify the test charts (only available if there are a number of test charts). The test chart name will display when you hover over the thumbnail preview. When you click the thumbnail, the related area is marked in the lower print preview by a frame [2].
Click "Submit Print Job" [3] and start the job on the machine.
