Measure

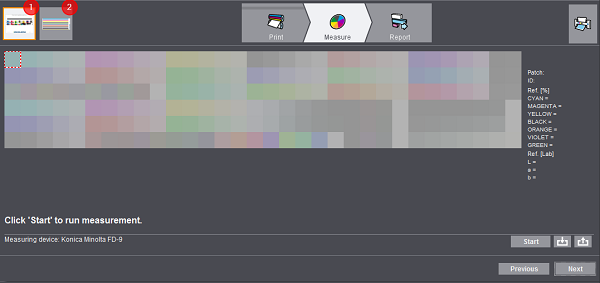

Use the thumbnail preview to select the test chart you want to measure.

The "Multicolor Quality Check" test chart [1] consists of three rows with device colors and three rows with Lab reference colors.

The "Homogeneity" test chart [2] consists of long color strips that are to be measured one after the other. The test chart for the Primefire has two parts. During measurement, make sure that the order is correct. Place both parts with the font facing you. The black color bar is found on the right on the first test page ("Left") and on the left on the second page ("Right").

Measure the test chart in the usual way. See Measuring Data.

Click "Next".
