Labelfire Primefire

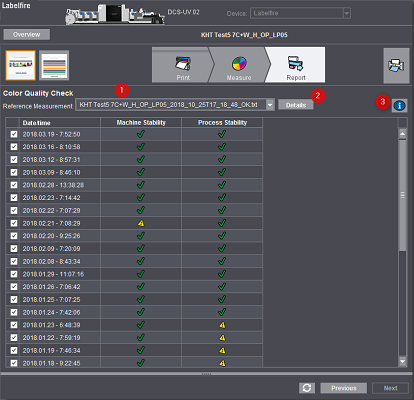

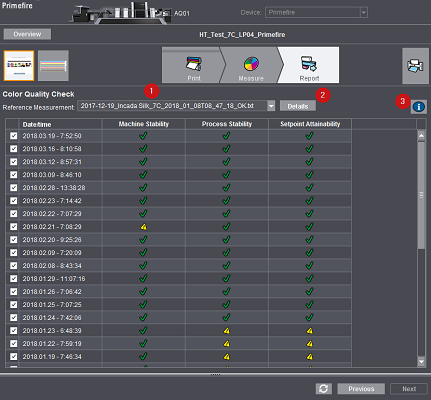

The color quality is checked on the basis of a table. This lists all test measurements run so far and color symbols indicate for each measurement whether the values for machine stability, process stability and setpoint attainability (Primefire only) are within the tolerance range. You can show the definition of the tolerance ranges with the Info button [3].
If you ran more than one reference measurement for the output condition, then select the reference you want in the list box [1].
To run a more accurate analysis, enable "Details" [2]. See Details.
