"Color settings" tab for CTP devices driven as a "Digital Plate­setter"

The following options are available for CTP devices:

 "Source Profiles" group

 CMY colors

"Enable CMYK Color Management" option

Use this option to specify that a CMYK input profile will be used for color conversion.

Note: Except for the selection of the input profile, the parameters for CMYK color man­agement are also applicable for grayscales.

If this option is not selected, the documents are not processed with color management. This option is necessary, for example, if the digital prints are to be used for color calibration (e.g. with the Prinect Color Toolbox). In this case, the output documents may not be processed with color management. Neither a CMYK input profile nor an output profile will be used.

Note: Color management for documents with RGB and grayscale colors remains enabled even if "Enable CMYK Color Management" is disabled.

"Use Embedded Profiles" option

If documents containing colored objects or images are to be output, these objects are automatically converted so that they can be output in the CMYK or grayscale color space. The input profiles required for the input color space -> profile connection space transformation are usually included in the PDF documents and are used by color management. If the PDF documents do not have an input profile, you can use the standard input profile set by default or select a different one using the Browse button.

You use the "Use Embedded Profiles" option to define which CMYK input profile will be used:

•If this option is enabled and a device-dependent input profile is embedded in the edited PDF document, then this profile will be used as the input profile.

•If this option is enabled and no input profile is embedded in the PDF files, the CMYK ICC profile selected in "If no profile is known" will be used for color management.

•If this option is not enabled, the CMYK ICC profile selected in "If no profile is known" will always be used for color management.

Note: The selected profiles are checked for suitability for the current context. A warning is issued if an unsuitable profile is selected.

You can create input ICC profiles – unless appropriate device profiles are already available – for example with the "Prinect Color Toolbox" and place them on the Prinect Server. The ICC profiles are saved in their subfolders in a folder below the path "PTConfig\SysConfig\Resources\ICC Profiles" (PTConfig is the shared configuration folder of the Prinect Server). This is where you can add custom ICC profiles and create appropriate folders if required.

Note: In "Administration" > "Resources" > "ICC Profiles" you can see an overview of all ICC profiles available in the Prinect workflow (see also ICC Profiles). You can also import new profiles, create a new profile folder, delete profiles, etc.

"Separate input profile settings for image and text elements or graphic elements" option

By default, the "Input Profiles", "Rendering Intent" and "BPC" (black point compensation) parameters are available for CMYK and RGB colors for image, text and graphic objects. This means that the set parameters (input profile, rendering intent, black point compensation) are valid for image, text and graphic objects.

Click the plus sign beside the "Images" icon to display the same parameters for image elements and for text/graphic objects separately. In this way, you can set up the input performance of color man­agement separately for image/text objects and for graphic objects.

The settings that currently can be seen always affect color management.

•Collapsed (plus sign displays): joint settings for image, text and graphic objects.

•Expanded (minus sign displays): separate settings for image objects and text/graphic objects.

Rendering Intent (RI)

In addition to selecting ICC profiles, you can set the rendering intent for the colored objects. Rende­ring intent determines how color matching is done. Since losses always occur during a color space transformation, it can be helpful, for example, to retain the photographic perception of an original and to accept a limit on the number of color values. The following parameters are available for rendering intent: "Perceptual", "Saturation", "Relative Colorimetric" and "Absolute Colorimetric":

•Perceptual

When you use the "Perceptual" parameter, you obtain an output, that essentially contains the perceptible impression of the original. This means that the precise, colorimetric rendering of the colors is modified in favor of the retention of the relative color relationships. In a smaller target color space, the color gamut is compressed accordingly. Vice versa, in a larger target color space and with suitable profiles, the color space may be expanded. With this color matching option, the hue in all the natural colors of the original is reproduced for the most part correctly but with restrictions in the contrast. The type of color matching is manufacturer-specific, with the user being able to set some of the aspects such as contrast and chroma change during profile gener­ation. This option is especially suitable for photographs.

•Saturation

In the output, the colors are rendered in such a manner that the color saturation is retained or even emphasized. The type of color matching is manufacturer-specific, with the user being able to define some settings during profile generation. This option is suitable for business graphics where the color saturation is the most important attribute in color rendering.

•Relative colorimetric

Colors are rendered taking solely the light source into account. The rendering intent of the print medium (e.g. the color of the unprinted paper) is not taken into account. For example, the illu­minant of a monitor would be correctly rendered on the print medium. That is why the term "rel­ative" is used. All colors that lie within the output color space are rendered identically. All colors that lie outside of the target color space are displayed on the margin of the target color space. That is why the term "colorimetric" is used.

The advantage of this rendering intent is that different illuminants of different output media are taken into account. The disadvantage is that the color adaptations are not exactly retained when switching from one output medium to another. As a result, very dark or very colorful details in the originals can be lost when they are reproduced. The substrate is not simulated during an output process simulation. If production run paper is used during the simulation, the result is the same as if you used the "absolute colorimetric" rendering intent. This rendering intent is suitable mainly for vector graphics.

•Absolute colorimetric

Colors are rendered taking the light source and the medium illuminant (e.g. the color of the unprinted paper). For example, the illuminant of a newsprint paper which is shifted from illus­tration printing paper towards yellow compared to the illuminant of paper is rendered with a yel­lowish cast. That is why the term "absolute" is used. That is why "Absolute colorimetric" is the default setting for a proof output. All colors that lie outside of the output color space are dis­played on the margin of the output color space.

The advantage of this rendering intent is that the exact color values are retained when switching from one output medium to another. The disadvantage is that any colors that lie outside of the output color space cannot be distinguished. This rendering intent is especially suitable for logos or monochrome objects which must be reproduced exactly the same way on different output media.

Note: "Absolute colorimetric" is always set as the rendering intent for spot colors. This makes sure that the spot colors are simulated as best as possible.

•From Document

The Color Rendering Intents that were defined for images and graphics in the PDF documents are used. Normally, "relative" is set as the rendering intent in the PDF documents. However, dif­ferent rendering intents may have been assigned to single objects. In such cases, the object-rela­ted rendering intent is used if this option is set. If necessary, you can check such PDF documents in advance, for example, with the Prinect PDF Toolbox.

Note: You should select "From Document" only if you are sure that the edited documents have rendering intent settings that can correctly control the color space conversion desired. However, if this is not sure, you should not use this setting if possible.

"BPC" (black point compensation) option

Black point compensation (BPC) becomes active if you enable the "BPC" option. You can enable black point compensation (BPC) for "Relative Colorimetric" "Perceptual" and "Saturation" rendering intents. However, the effect of this option can only be seen for the rendering intent "Relative Colori­metric".

In gamut mapping, all L shadows (in the L*a*b* color space) that are darker than black toner/ink are matched to black toner/ink and, as a result, shadow definition is lost.

Black point compensation enhances the reproduction area when the "Relative colorimetric" rendering intent is used for color space conversion to the L*a*b* color space or from the L*a*b* color space to the device color space. The L*a*b* color space has more lightness levels for dark image parts than the CMYK color space because the L*a*b* color space is larger than the CMYK device color space. In a color space conversion from the L*a*b* to the CMYK color space with "Relative Colorimetric" ren­dering intent, the color space is cut off or reproduced without definition in the shadows because they are located outside the displayable range. As a result, details in dark parts of the image are often lost, especially if ICC profiles for uncoated papers are used for color space conversion.

Black point compensation matches the black point during color space conversion, causing the defi­nition in such dark image parts to be kept. This "elongates" the shadows causing color shifts to occur also in the lighter color values. For that reason, this method is not always suited to true-color proof­ing.

We recommend that you use "Perceptual" rendering intent with black point compensation and not "Relative Colorimetric" rendering intent. This rendering intent makes it possible for the various details in dark image parts to be reproduced, while keeping color shifts to a minimum. In principle, differ­ences cannot be fully avoided because of the different sizes of the color spaces.

"Keep CMYK Colors" parameter

When this option is enabled, CMY in solid tint single-color or two-color image parts is kept.

Normally, if color management is used, C=100, M=0, Y=0, K=0 becomes, for example, C=96, M=12, Y=8, K=2. In other words, "dirtying elements" creep in. These elements are fully correct if you have a true-color display. However, this behavior may not be wanted in technical diagrams because color margins occur at the mainly clearly defined edges, for example, due to register errors or if the maxi­mum color of the original printing process is to be retained for this color area.

"Primaries (solid)" selected

Cyan, magenta, yellow and black (K) are the primary colors in the CMYK color model. When this is selected, only the solid tint primaries with a value of 100% are kept in their original color percent­ages, meaning that they are not changed by color management. Example: 100% magenta.

"Primaries (all)" selected

When this is selected, all the primaries (including those less than 100%) are kept in their original color percentages, meaning that they are not changed by color management. Example: 70% magenta.

"+ Secondaries (solid)" selected

Secondary colors are colors that result from mixing two primary colors (C, M,Y). Secondary colors are "red" (C=0, M=100, Y=100), "green" (C=100, M=0, Y=100) and "blue" (C=100, M=100, Y=0) in the CMYK color model.

The preservation of secondary colors is always in addition to the preservation of primary colors. This is highlighted by the prefixed plus sign.

When secondary colors (solid tint) are preserved, solid tint secondaries each with 100% are kept in addition to the primaries, e.g. blue (C=100, M=100, Y=0, K=0).

By clicking the plus sign in front of the list box, you can set up that CMYK colors will be kept sepa­rately for images and graphics.

"+ Secondaries (all)" selected

When secondary colors (all) are preserved, all the secondaries are kept in addition to the primaries, even if originally they are not made up of 100% primaries. For example, red (C=0, M=80, Y=80, K=0) doesn't change.

Caution: You should enable the preservation of primary / secondary colors only if, for technical reasons, the colors really have to be kept and not be influenced by color man­agement. You should never enable these options by default as otherwise you can have results that you may not want in your printing.

Note: Objects or documents in the "Gray" color space are not handled by color manage­ment if "Preserve colors" is enabled.

 RGB colors

"Use Embedded Profiles" option

This option lets you define which RGB input profile will be used:

•If this option is enabled and a device-dependent input profile is embedded in the PDF docu­ments, then this profile will be used as the input profile.

•If this option is enabled and no input profile is embedded in the PDF files, the RGB ICC profile selected will be used for color management.

•If this option is not enabled, the RGB ICC profile selected will always be used for color manage­ment.

Apart from that, the explanatory notes made for CMYK colors are applicable. See "Use Embedded Profiles" option.

Separate input profile settings for image and text elements or graphic elements

See "Separate input profile settings for image and text elements or graphic elements" option.

Rendering Intent (RI)

See Rendering Intent (RI).

"BPC" (black point compensation) option

See "BPC" (black point compensation) option.

 Keep Black

The settings are equivalent to the settings for toner-based digital presses:

"Keep Black in Images" option

If this option is enabled, only C, M and Y are converted to the target CMY color space in images, K is not converted. Black remains identical.

Note: This setting can cause issues during an output if the black inks have different den­sities in the original and target color spaces.

"Match Lightness" option

This is a special setting that works as follows:

•C, M, Y are converted to the target CMY color space for mid-range and light hues. K is converted by means of a gradation curve.

•A special four-dimensional model keeping K is used for dark hues.

Extensive test series have shown this process to be the best. This setting eliminates most of the prob­lems in complex documents. This function is available only in Heidelberg's color management. This setting is suitable for documents with text, color and gray images.

"Keep Black for Text / Graphics" option

If this option is enabled, color management does not affect black in the text or graphic objects. The following options are available for this:

•All

Black defined for output is kept in its original form for all text and/or graphic objects that only contain black. In other words, color management does not affect black definition.

Note: If "Keep Black for Text / Graphics > All" is enabled and a page has no other sepa­rations except for black, this is highlighted in the preview by a black separation icon.

This lets you see right away whether a sheet with apparently black content really only contains the black separation. Otherwise it might be printed unintentionally in several colors.

•Keep 100% Black

When enabled, this option has the following impact: If black is defined as C=M=Y=0 and K=100% or as R=G=B=0 and/or gray=0 in text or graphic objects, black is kept as 100% black or the colors are set to C=M=Y=0 and K=100%.

"Black Overprint" option for text / graphics

The "Overprint" function is mostly used to avoid register problems and flashes in black fonts and other black graphic objects that lie on top of a colored background. For design purposes, overprint is also used with hard shadows or colored CMYK objects. You can control overprint best if it is set directly in the application that creates the job.

The overprint settings of the Prinect Color Management on the one hand compensates for application shortcomings and on the other processes faulty documents so that you get the overprint effect you want. It's not possible to detect on a page which object is to overprint and which not. For that reason, these settings are not sufficient in some individual cases.

All black elements defined as knockout are set to "overprint" if this option is enabled.

This option affects the following color spaces: "DeviceCMYK" with C=M=Y=0%, "DeviceGray" or "/Separation/Black". You can use this option specifically on text and/or graphic objects.

 Spot colors

Some of these settings are equivalent to the settings for toner-based digital presses:

"Remove Transparent Spot Colors" option

Spot colors can be defined as "transparent". This is set in "Colors" in the job settings (see "Colors" Section). Generally, transparent spot colors are used as varnishes.

When this option is enabled, all spot colors defined as "transparent" are removed from the printing data. You should enable this option if the press has no coating unit.

You must disable this option if a coating unit is available and if it is to be used to output transparent spot colors.

"Remove 'DieLine'" option

"DieLine" spot colors will not be printed when this option is enabled.. The "DieLine" spot color is usu­ally used as a proof color in PDF documents, for example, to display proof marks. If a proof is to be made of the current print job, you can disable this option for proofing. You should enable this option for the production run.

"Map Spot Colors to Process Colors" option

When this option is enabled, spot colors are not output as separate color separations but are con­verted to CMYK colors.

The impact of this option is visualized in the sheet preview.

Note: The spot colors that are set in "Colors" in the print job are always used in the "Dig­ital Printing" step (see "Colors" Section).

•PDF documents generally have "recipes" for replacing the spot colors in the document by pro­cess colors (CMK replacement). In other words, each spot color in the document has set CMYK values that replace this spot color. In "Colors" you can set which replacement policies will be used, those in the job settings or those in the PDF documents.

•The "Administration" section of the Prinect Cockpit also has recipes for spot color replacement in "Color Tables". In "Colors" you can set which replacement policies will be used, those in the job settings or those in "Administration > Color Tables".

"Output Quality ΔE₀₀"option

This function gives you the option of checking the accuracy with which spot colors can be simulated in digital printing without having to output test prints.

The ΔE 2000 values display for each spot color for the set paper grade (see "Paper" list box). If different paper grades are used for the cover and the body, these values display separately for each of these paper grades. The ΔE 2000 value displayed is red if it exceeds a critical amount.

"Spot Color Matching" function

You can use "Spot Color Matching" if you need special settings for spot color replacement. This func­tion lets you customize the settings for replacing spot colors in your current print job.

Note: If a color profile is set in the job and it deviates from the output profile defined in the digital print settings of the Prinect Manager, then a warning is issued whenever you try to open the "Spot Color Matching" dialog. This warning draws your attention to the fact that spot color matching is not possible because of the different color profiles. You can choose to apply the output profile of the Prinect Manager for spot color matching or to cancel spot color matching.

We recommend that you have a probe of the correct spot color in the original on hand before you start color matching to be able to compare the printouts of the test charts with this probe.

Note: The settings always relate to a specific paper grade on a specific press.

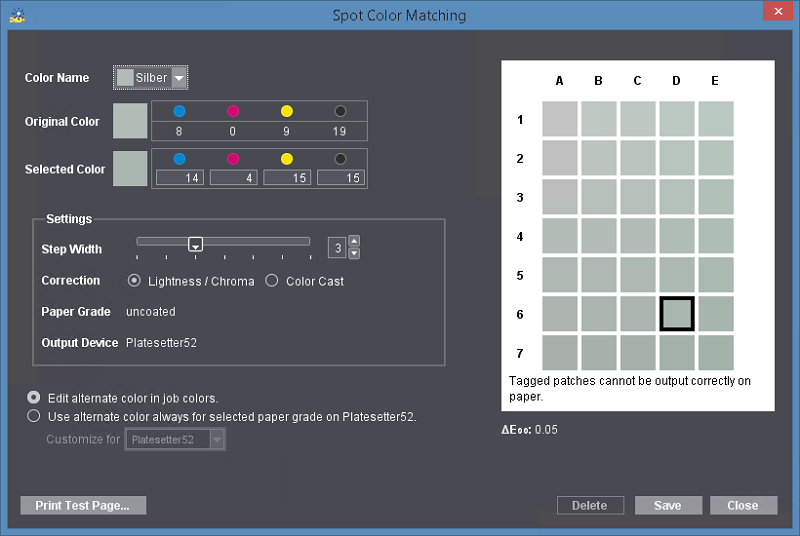

1.Click "Spot Color Matching".

The "Spot Color Matching" dialog opens.

2.In the "Color Name" list box, first select the spot color for which you want to define a substitute color. All the spot colors that are in the current print job are listed.

The original color displays in "C4", the middle color patch. Modified colors display around the original color. Colors that cannot be output correctly to the paper set in the print job are marked by an "x".

The ΔE 2000 value of the currently selected color patch displays below the color patches. When you move over a different color patch with the mouse cursor, the current ΔE 2000 value of this patch displays. This is a fast way to view the differences to the original color and find an optimal substitute color.

The aim of these settings is to determine a color that optimally replaces the original spot color, allowing it to be output correctly (in other words, a color that is not marked by an "x").

3.Click "Print Test Page". A test chart is printed.

Note: Each test chart printout creates a new separate print job in the Prinect Manager. These test chart print jobs are set up with the color settings that are required for a true-color output.

4.Now compare the printout of the test chart with the original copy and determine the color patch that best matches the original spot color.

5.If the deviation is still too big, enable either "Lightness/Chroma" or "Color Cast" in "Correction" to set the type of color change. Now move the "Step width" slider until suitable patches display in the preview window. The bigger the step width, the greater the differences between each of the color patches.

6.Repeat steps 3 and 4 until you are satisfied that the target color is determined accurately enough. On the test chart, the patch with the correct color has an "address", e.g. "D6".

7.Click the "D6" patch in the "Spot Color Matching" dialog.

The CMYK values or the L*a*b* values (whichever one is defined) of the original color display in "Original Color". The values of the selected color display accordingly in "Selected Color" (in our example, those of "D6").

Note: The values of the target color are always specified as CMYK values even if the orig­inal color is set in the L*a*b* color space (exception: inkjet presses).

8.Enable "Edit alternate color in job colors" if you wish to set the alternate color only for the current print job.

If the alternate color is always to be set for the paper grade used, enable "Use alternate color always for paper grade "..." on (...)" and select the paper grade that will be used for printing the test page in the "Customize for" list box. Then these settings affect all print jobs that are printed with this paper grade on this press. This setup is applicable until you edit it again.

9.If you are satisfied with the colors selected, confirm the dialog with "Save".

(10).Use the "Delete" button to reset all the settings so that special spot color settings are no longer defined for the particular paper grade/press combination.

The "Paper Grade" and "Output Device" boxes are for your information only.

 Output Profile

This is where you define which output profile will be used for CTP output.

"Automatic Selection by Paper Type" option

When you enable this option, color is matched automatically to the color profile of the selected paper grade. This requires that the paper grades used are characterized. In other words, there is a suitable color profile that is matched as best as possible to the color reproduction properties of the paper. Normally, this is the best setting for color management.

"Convert to Gray" option

When you enable this option, the job or component job (cover or content) is output as a grayscale even if it contains color pages. This setting displays in the preview.

"Other Profile" option

You can use this option if you want to use a different output profile to the one selected by default for the set paper for CTP output. Use the Browse button to select an ICC profile file in the system envi­ronment.

Default:

Normally, an all-round output profile matching the paper grade is set by default (isotype 1.icc, .., iso­type4.icc). Instead of the all-round profiles, you can also create separate output profiles matching the paper grade used and load them as a default. Proceed as follows:

1.On the digital press with the intended paper grade, create an output ICC profile in each case and name these profile files "custom1.icc", "custom2.icc", "custom3.icc" or "custom4.icc".

2.Copy or move these profile files to the folder of digital printing ICC profiles, e.g. "E:\PTCon­fig\SysConfig\Resources\ICC Profiles\Printer\Digital\CV".

If you now enable "Automatic Selection by Paper Type", the custom output profile matching the selected paper grade is automatically set by default.

Note: The selected profiles are checked for suitability for the current context. A warning is issued if an unsuitable profile is selected.

"Profile Customization" function

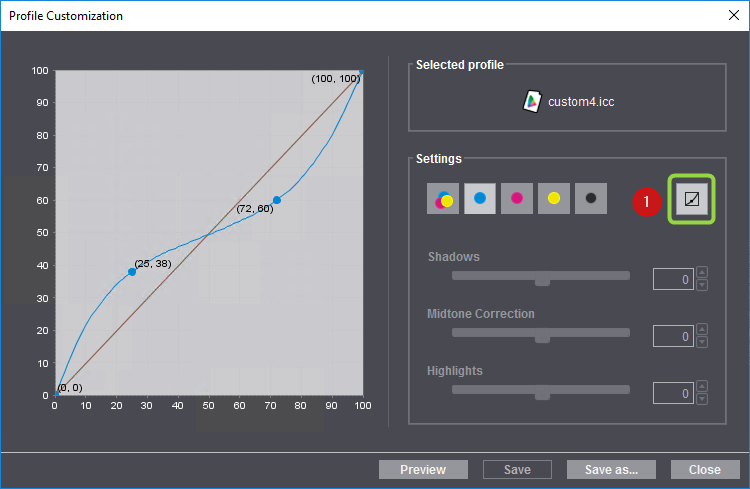

The "Profile Customization" function lets you fine-tune the currently set output profile under visual control on the screen when needed. The following dialog opens when you click the "Profile Custom­ization" button:

The name of the active profile displays at the top right.

In "Settings" you will find the toggle (1) for switching between freehand and slider operation of profile customization.

Freehand mode:

1.The sliders are disabled in the freehand mode and you can modify the curve by dragging it while holding down the left mouse button. This creates an "anchor point" and the related coordinates display (in percent). You can create several anchor points by clicking and dragging a number of times.

2.You can remove each anchor point with "Remove" in the context-sensitive menu over the anchor point.

3.The page displayed in the preview is matched to the new color profile settings when you click "Preview". This lets you check the effect of the edited color profile.

Slider mode:

1.You can use the sliders for "Shadows", "Midtone Correction" and "Highlights" jointly for CMY (2) or separately for C, M, Y (3)  and K (4) when you click the toggle button (1). This lets you set the parameters using sliders. The sliders have the following impacts:

·Shadows: This slider changes the value of the curve at 75%. The values can be changed between -20% and +20%.

·Midtone Correction: This slider changes the curve at 50%. By doing this, the whole curve can be moved up or down, meaning that other values of the curve are matched. The values can be changed between -30% and +30%.

·Highlights: This slider changes the value of the curve at 25%. The values can be changed between -20% and +20%.

The impacts of the changes made with the sliders display immediately in the preview.

2.A slider is reset to its middle position when you double-click its name or the slider itself.

You can save the modified color profile if you are happy with the settings. The mode (freehand or slider) that is currently set is the one that has an impact. The color profile will be overwritten when you click "Save". You cannot overwrite a standard profile installed by default with "Save". Click "Save as" to save the modified color profile under a different name on the Prinect server. The profile can then be used again for subsequent jobs.

Click "Close" to close the dialog. A message appears if changes were made but not saved.
