Plate sheets are printed after a plate set has been imaged and uniquely identify an imaged plate set of a sheet.
When is a plate set sheet printed?
The installed Prinect Manager variant determines the time when a pallet sheet is printed. The following variants are available, depending on whether only Prinect Prepress or Prinect Integration with Prinect Prepress and Prinect Press is installed as a prepress system:
•Prinect Prepress Standalone:
A plate set sheet is printed automatically as soon as you submit a sheet to an "ImpositionOutput" sequence (even if only a single separation is imaged).
•Prinect Prepress + Prinect Press:
A pallet sheet is printed automatically as soon as all plates necessary for the next printing operation have been imaged.
What information will be printed?

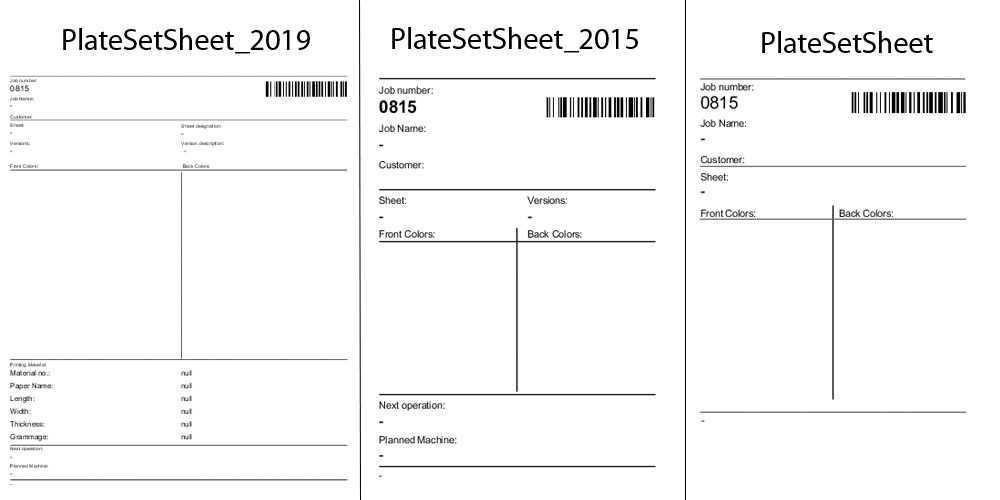

The content of the plate set sheet varies according to the accompanying paper template you selected. By default, there are three accompanying paper templates:
The following table shows you the job data that are printed with the respective templates:
Job data | Template | Template | Templates |
|---|---|---|---|
Logo Logo you allocated to the plate sheet. See Editing accompanying paper templates. | Yes | Yes | Yes |
Job Number | Yes | Yes | Yes |
Job number as a barcode | Yes | Yes | Yes |
Job Name | Yes | Yes | Yes |
Sheet Sheet name. | Yes | Yes | Yes |
Customer | Yes | Yes | Yes |
List of all separations (front and back) with specification of variants. | Yes | Yes | Yes |
The date and time the plate sheet was printed. | Yes | Yes | Yes |
Version number and version name if this is a versioned job. | Yes | Yes | - |
Next operation if the information is available. | Yes | Yes | - |
Scheduled machine for the next operation if this information is available. | Yes | Yes | - |
Sheet name | Yes | - | - |
Version Description | Yes | - | - |
Barcode of the plate ID of each separation | Yes | - | - |
Printing material data: •Material No. •Paper Name •Length •Width •Thickness •Grammage | Yes | - | - |
Setup for output of a plate set sheet
1.A Windows printer (only DIN A4 printer) with Windows drivers must be set up on the Prinect server. See Defining Windows printers on the Prinect server.
2.If required, a new logo can be defined for the standard template. See Editing accompanying paper templates.
3.A plate set sheet template must be assigned to the respective device. See Assign an accompanying paper or time sheet template to a device.
