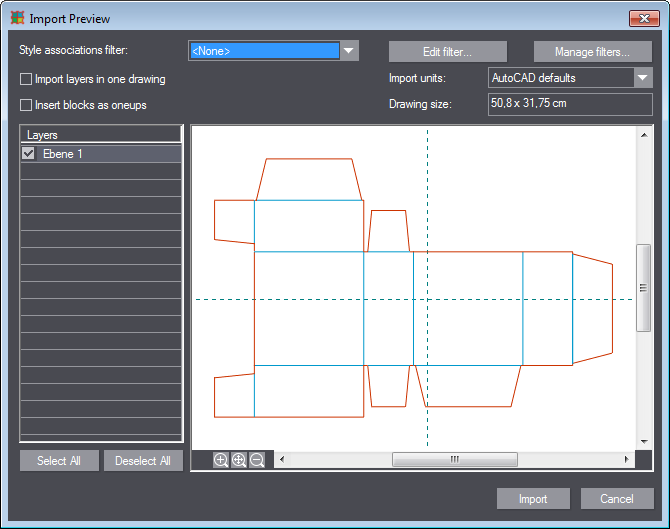

Style Association Filter

Assigns the style association filter from the list box. You can select pre­defined filters, add new filters to the list or edit the properties of existing filters.

Edit filter...

Opens the Dialog "Style Associations Filter" where you can modify the parameters defined for the selected filter.

Manage filters...

Opens the "Manage filters..." dialog.

Import layers in one drawing

The layers selected in the "Layers" group are imported into a drawing. A separate drawing is generated for each layer if the layers are not selected.

Insert blocks as 1ups

All available blocks are inserted as 1ups. In this way, each block is con­verted to a separate 1up drawing.

Import units

Select the unit of measure in the list box in which the file will be imported. The "drawing size" changes accordingly.

Drawing size

Shows the size of the imported drawing in the unit of measure set in "Import units" (e.g. "mm" or "cm").

Layers

Lists all available layers. Each layer has a check box. By selecting/dese­lecting the check boxes, you can define which layers will be imported. You can also select or deselect all the layers.

Scales up the zoom detail in the preview pane.

Fits the drawing into the preview pane

Zooms out the drawing in the preview pane.

Import

Imports the selected file to the Prinect Signa Station Packaging Pro & Label Pro module.

Cancel

Cancels the import and closes the dialog.
