"Set Base Panel"
|
|
"Set Base Panel" |
You can manually select the base panel around which the drawing is folded. By default, the best option for a base panel is automatically selected when generating the production phase with the Dialog "Production Phase Generation Wizard".
To manually select the base panel:
1.Click the "Set Base Panel" button.
2.Click on that panel of the drawing, which you want to select as the base panel.

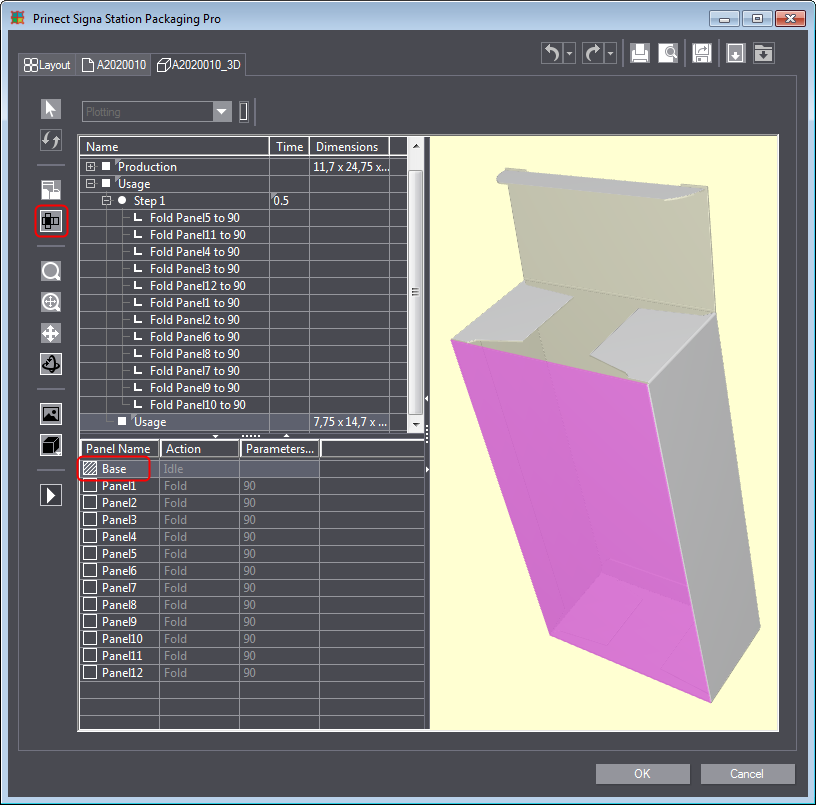

The selected pane is identified as base panel in the tabular area, and marked with a crosshatch icon in the "Panel Name" column.
Back to Tool Bar in the "3D Presenter" Tab.
