Administration - JDF Import
This is where you configure the settings needed for the JDF connection of a Management Information System (MIS) or Web Shop to the Prinect Manager.
Note: In earlier versions of the Prinect Manager, JDF import was set up in "Administration > System". The JDF import settings are no longer available there.

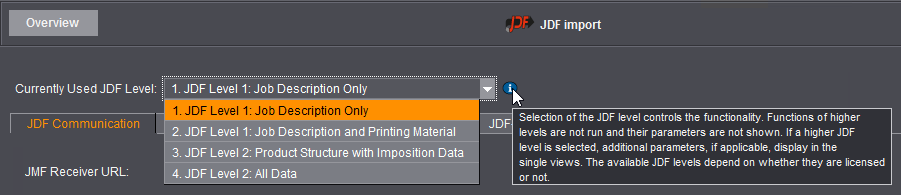

"Currently Used JDF Level" List Box
By selecting the JDF level, you define the amount of data to be transmitted from the MIS or Web Shop. By doing this, you can restrict the number of transmitted data types to avoid copying faulty data to the Prinect Manager. The number of options that display in the tabs of the JDF import varies according to the level you selected. In this example, all available options are described, in keeping with the top (4th) JDF level.
The various options are found in the following tabs:

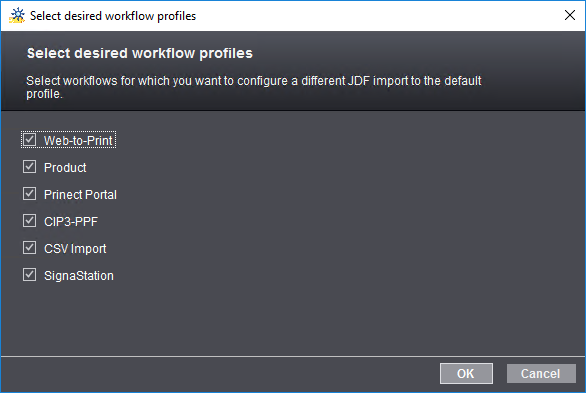

You can select one or more "workflow profiles" in the "Folder Structure", "Master data" and "JDF Data Additions" tabs. As a result, you decide for which systems connected via JDF import JDF data will be configured and used. Connection to an MIS is enabled by default and cannot be deselected explicitly.
When a profile is selected, data exchange between the Prinect Manager and another workflow component suited to JDF using the mechanisms of the "Job Definition Formats (JDF)" is enabled and set up. You can set up the following connections:
•MIS (default)
The MIS workflow, i.e. the connection of the Prinect Manager to an MIS (Management Information System) via the JDF Import function, is enabled by default as soon as JDF Import has been enabled and configured.
•Web-to-Print:
When selecting this profile, you configure the JDF connection to a Web-to-Print application in your system environment.
•Product
When selecting this profile, you can enable and configure the JDF Import connection for products. See also Product Types.
•Prinect Portal
This profile represents the JDF connection with the Prinect Portal. You should always choose this profile if you are using the Prinect Portal.
•CIP3-PPF
Use this profile to set up the connection of CIP3-PPF-compatible prepress systems. See also PPF Workflow — General.
•CSV Import
Certain data, e.g. addresses for circular letters, can exist as "Character Separated Values Tables" (CSV tables). Use this profile to set up JDF support when importing CSV data.
•Signa Station
When selecting this profile, you can enable and configure the JDF Import connection of Signa Station. We recommend that you use this profile if a Prinect Signa Station is present in the system environment.

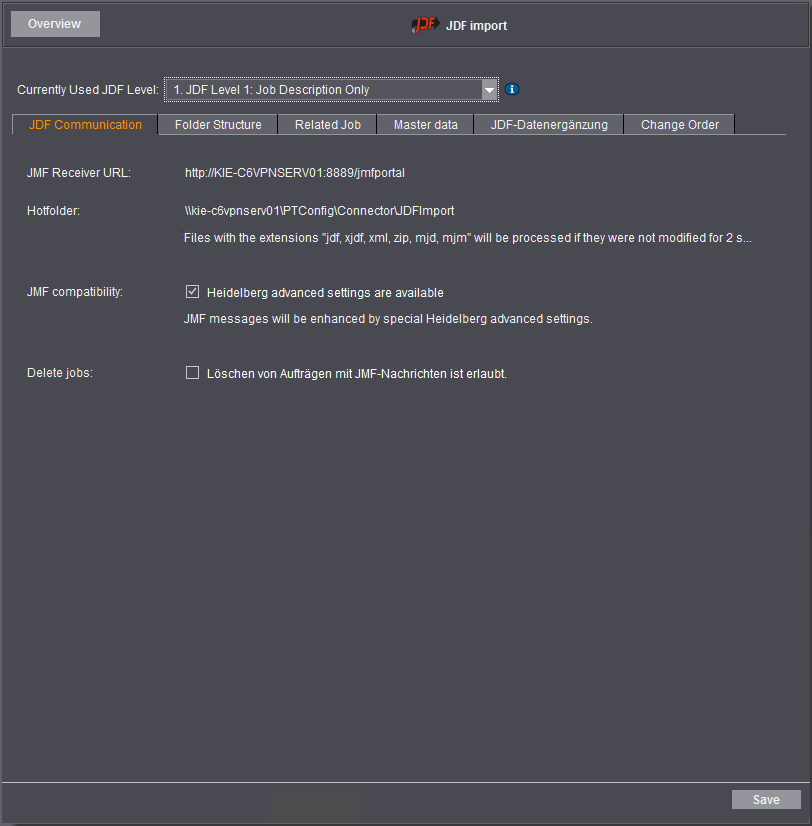

In this tab, you can view and/or set up the following parameters:
•JMF Receiver URL: JMF reception of the Prinect Manager, e.g. by the MIS, can be addressed via this URL.
By default, this URL is defined as follows: "http://[Prinect server name]:8889/jmfportal". In this case, the port number = 8889 and the path = jmfportal.
You cannot change this setting. If the JMF sender of your MIS is set to a different target URL, you must change this on your MIS.
•Hotfolder: This is the input directory for incoming JDF files. Only JDF files which are saved in this directory are processed automatically. The default folder is: "\\[Prinect servername]\PTConfig\Connector\JDFImport".
Files that have "jdf", "xjdf", "xml", "zip", "mjd" and "mjm" as their extension can be edited as incoming files with the JDF Import functionality. When files enter this hotfolder, processing starts after a delay time of two seconds.
•JMF compatibility: If you enable "Heidelberg advanced settings are available", incoming messages as JMFs (Job Messaging Format) are supplemented by special Heidelberg advanced settings. You should enable this option if the upstream system (MIS, Web Shop) is a Heidelberg product. If if is not, disable this option to ensure compatibility of the JMF format.
•Delete jobs: You can delete corresponding jobs in Prinect Manager if you enable the option "Allow deletion of jobs with JMF messages". You cannot delete jobs of this kind in the Prinect Manager if the option is not enabled.
See also "JDF Communication" tab.

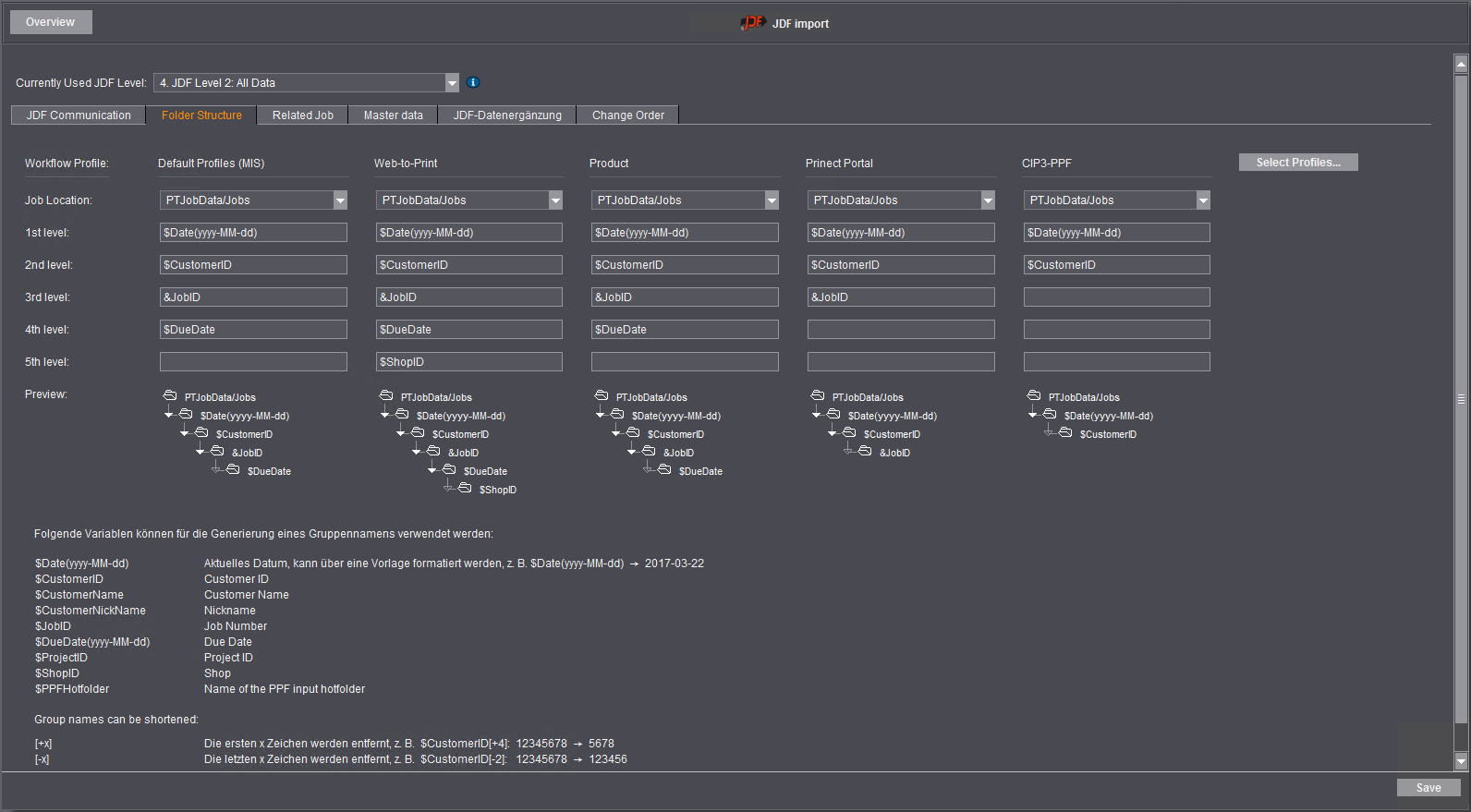

A folder structure lets you give your job list a clearer overview by linking a predefined structure of the job list to the JDF import. This is where you can create folder structures for different workflow profiles.
Set up a folder structure
Select profiles
You can select other workflow profiles by clicking "Select Profiles" if you wish to enable and set up the folder structure for other workflow profiles except for the MIS connection. See Select profiles.
"Job Location" list box
The JDF Connector data are managed below the job location, by default below the "PTJobData\Jobs" folder. The "Job Location" list box displays if at least one additional job location is set up. You then select the job location in this box that is affected by the folder structure.
Levels of the folder structure
For each enabled profile, enter the structure variables you want in levels 1 to 5.
Note: We recommend that you mark (click with the mouse) the structure variables you want (with prefixed dollar sign) from the description in the lower part of the window, copy them with command key + C and paste them into the text box with command key + V. By doing this, you avoid any typing mistakes.
You can also enter one or more letters as a prefix in a text box to tag and differentiate the folders concerned.
You must always enter a variable for the first level. Levels 2 thru 5 are optional. The impact of the folder structure on the job list depends on the workflow profile through which the jobs are imported.
The levels later represent a folder structure in the job list. You can find out which folder structures are possible in the description in the lower part of the window.
In "Preview", you can see at once after you enter the data what the folder structure in the job list looks like. However, you must have grouped the job list in "Jobs" by the "Job group" column (see Grouping the job list).
Click "Apply" once you have finished all your entries.
Note: Configuration of the folder structure only impacts newly imported jobs.
You can find more information in: "Folder Structure" Tab.

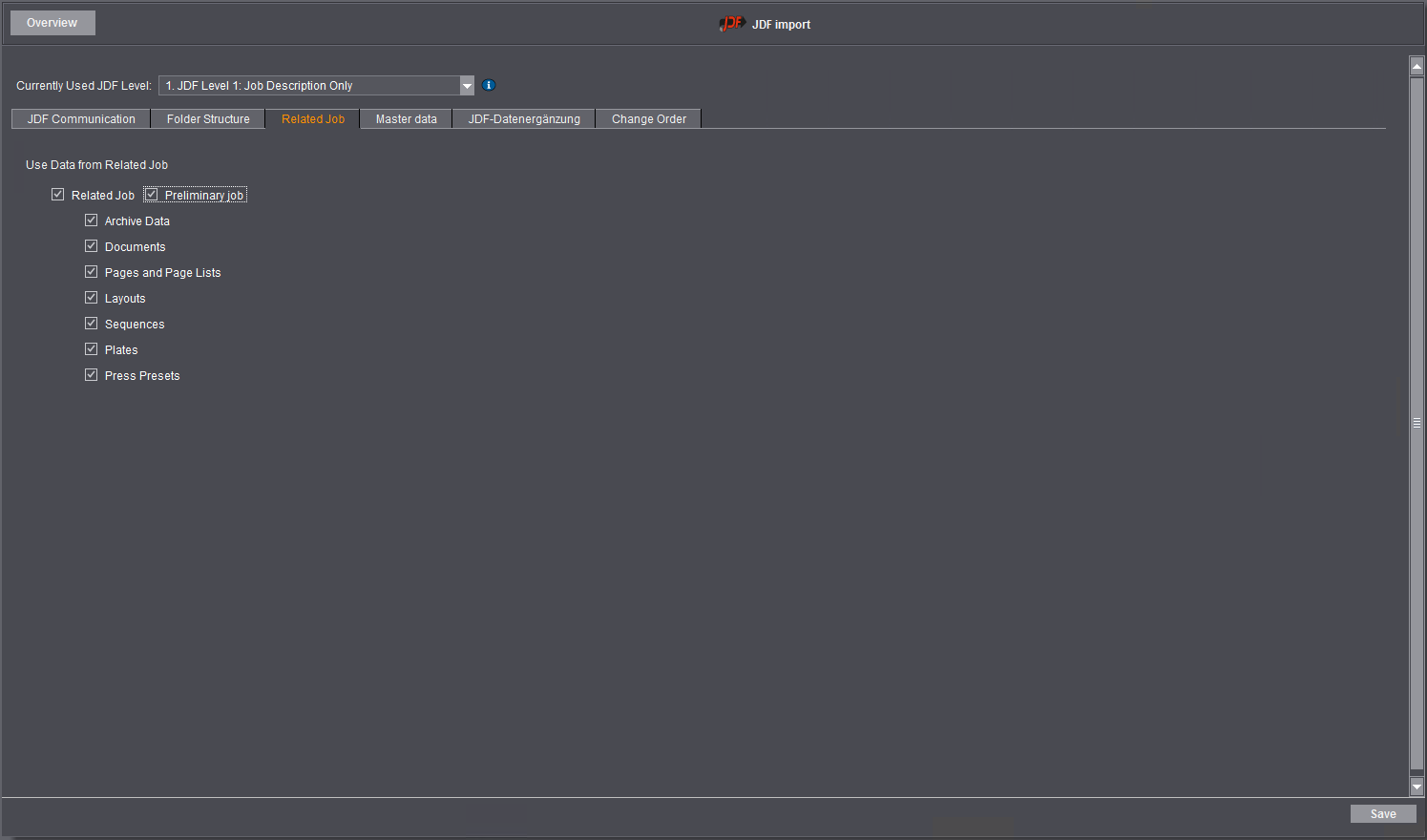

The options in this tab are relevant only for repeat jobs and preliminary jobs that are generated by the MIS and imported to the Prinect Manager.
"Related Job" option
You can use this option to define whether data from a predecessor job will be copied automatically to the new job (repeat job). When the option is enabled, the data checkmarked below it are copied automatically to the repeat job.
You can copy the following data:
•Archive data
•Documents
•Pages and page lists
•Layouts
•Sequences
•Plates
•Press Presets
You can find more information in: "Related Job" Tab.
"Preliminary job" option
This option lets you define whether data from a preliminary job will be copied automatically to the "real" job.
A preliminary job is a job that was created by the customer of a print shop and whose uploaded PDF data have already been checked (preflight). Customers can create jobs of this kind in the Prinect Portal using the "Files and Approvals" widget if they have the permission to do so. When the print shop creates a job with the same Customer Job ID and same Customer ID in the Business Manager or another MIS, the data are copied from the preliminary job to the real job and the preliminary job is deleted.

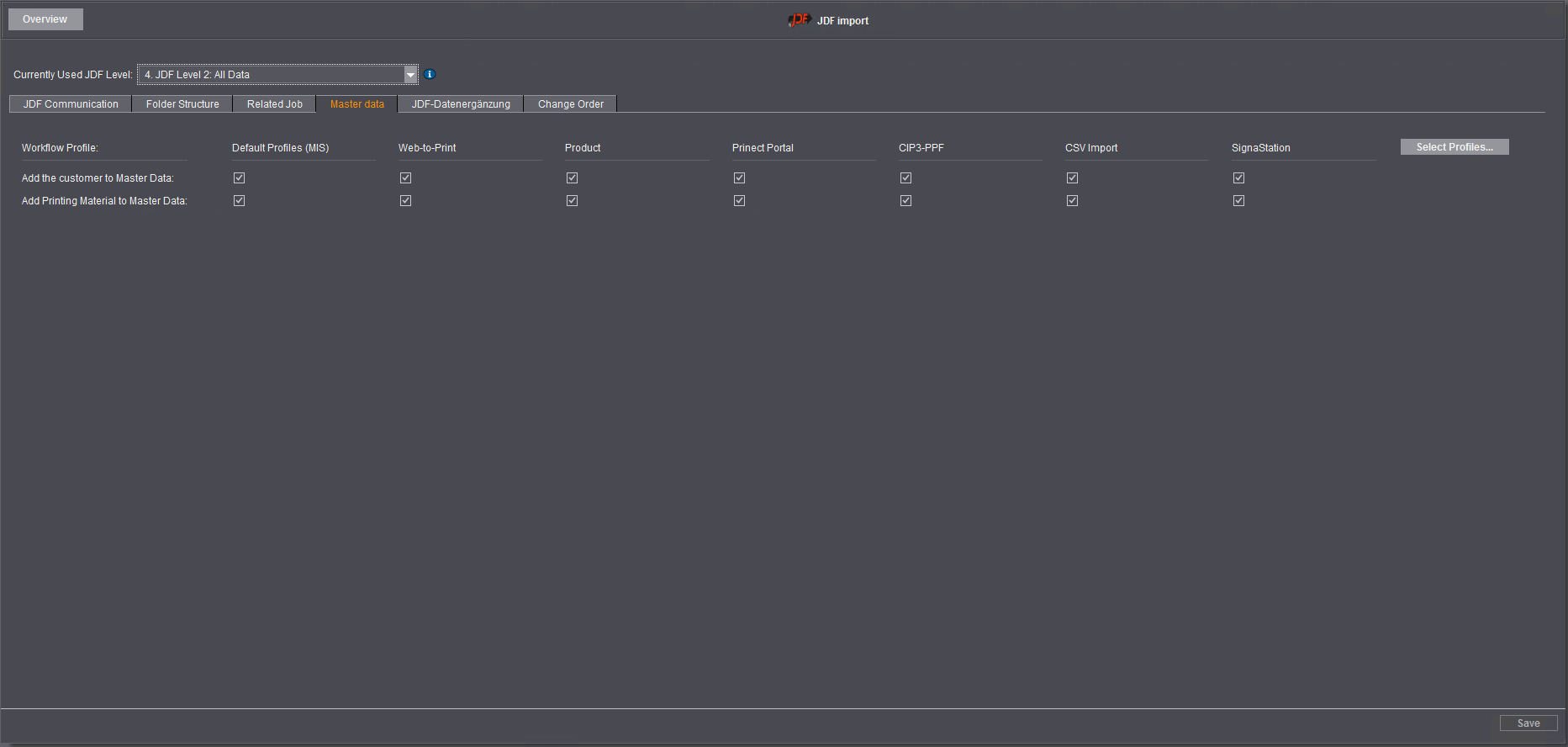

This is where you configure the master data transfer from a job imported via JDF to the Master Data Store (MDS) and the master data transfer from the MDS to an imported job.
Select profiles
With the exception of the MIS connection, you can select other workflow profiles by clicking "Select Profiles" if you wish to enable and set up the master data transfer for other workflow profiles. See Select profiles.
Options for "Add the customer to Master Data"
When this option is enabled, customer data is transferred automatically from the MIS to the MDS if the customer is not yet available in the MDS. See Import Master Data from a Job to the MDS
Note: If a customer is registered in the MDS and if this customer (perhaps with less customer data) is in a print job coming from the MIS, the customer data of the MIS are added automatically to the customer data of the print job.
Options for "Add Printing Material to Master Data"
When these options are enabled, printing material data for each of the profiles are written automatically from a job to the MDS if the printing material is not yet available in the MDS. See Import Master Data from a Job to the MDS.
You can find more information in: "Master data" Tab.

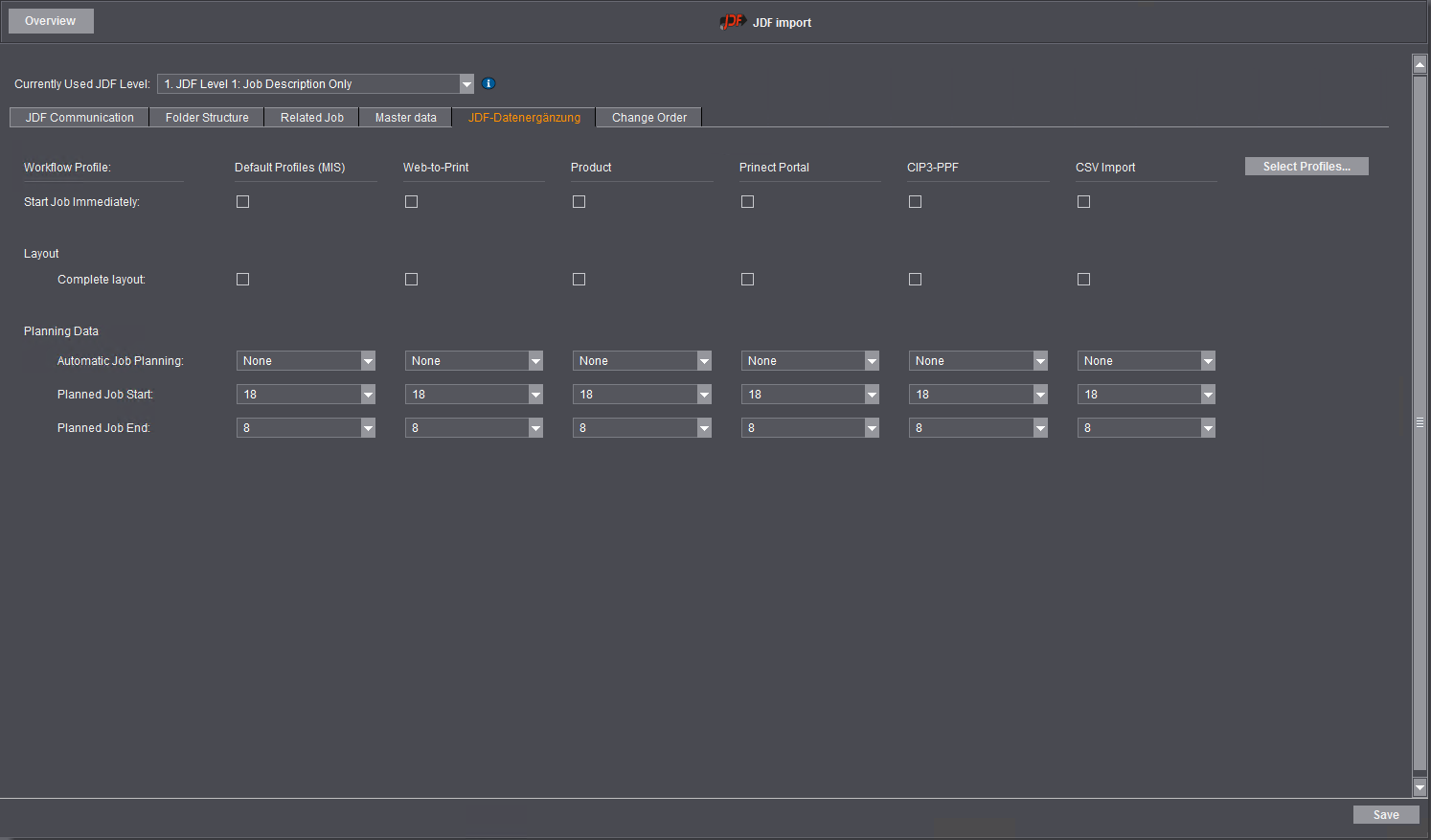

In this tab, the JDF files generated by the MIS are customized before they are transferred to the Prinect Manager. This is where you can, if required, modify and/or supplement JDF data that will be imported to the Prinect Manager to match them optimally to the processes of the Prinect Manager.
Caution: Make changes in this tab only following consultation with your project manager. A configuration that is not suitable can give you unwanted print results.
Select profiles
With the exception of the MIS connection, you can select other workflow profiles by clicking "Select Profiles" if you wish to enable and set up JDF data additions for other workflow profiles. See Select profiles.
You can find more information in: "JDF Data Additions" Tab.

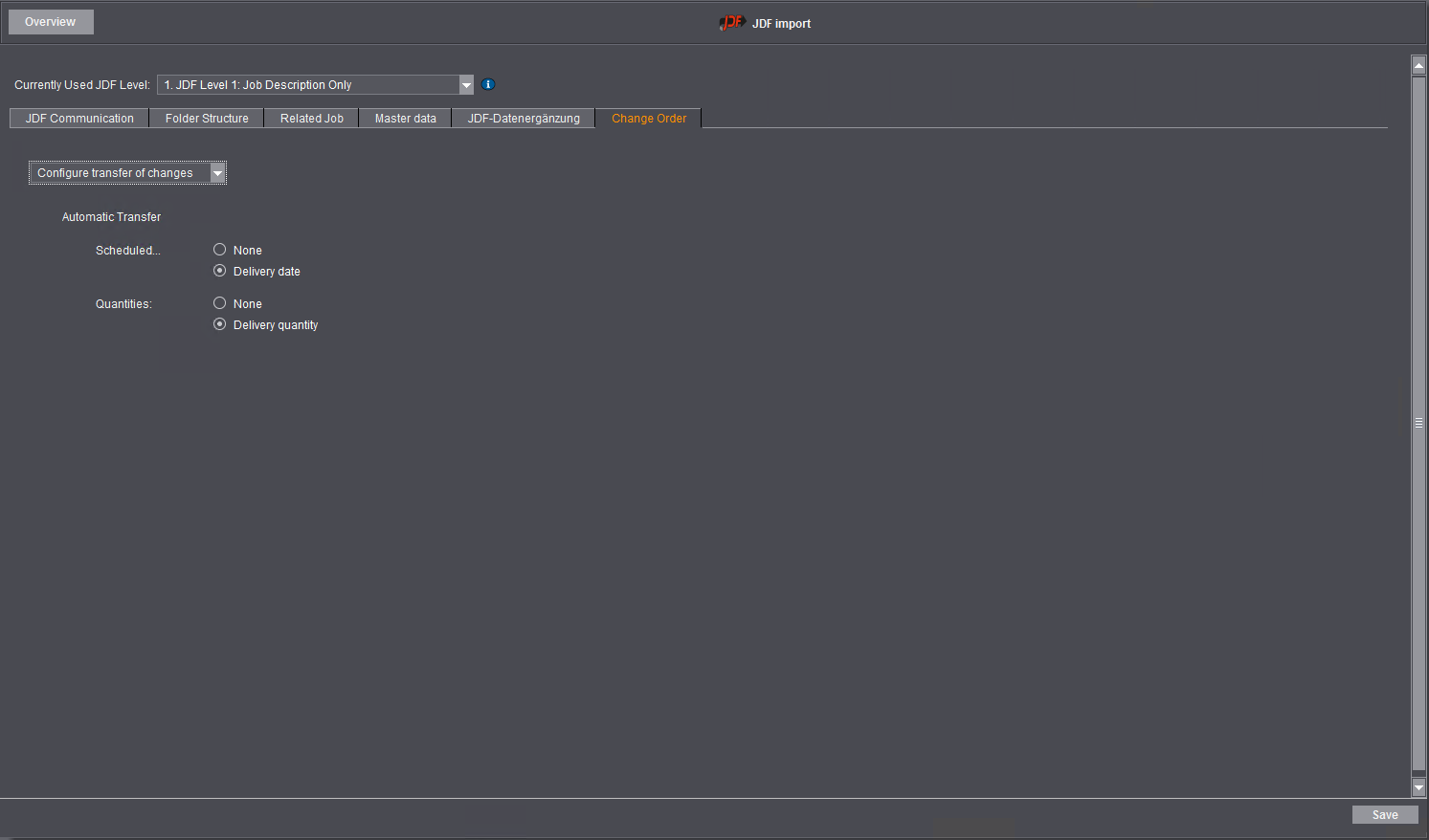

In this tab, you set up how orders with changes made in the MIS will be imported to the Prinect Manager.
The Prinect Manager automatically detects any changes in an existing order made by an MIS. The job data already entered is compared against the new job data here.
In "Change Order", you can configure for each of the large number of possible order changes whether a "Change Order" request is adopted/accepted or rejected by the MIS and what were the boundary conditions.
You can find more information in: “Change Order" Tab.
