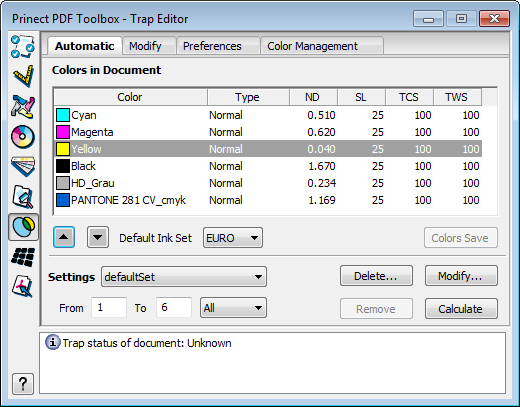

Colors in Document
This lists the process colors used (in the order they will be printed) with their various parameters. If an existing color type is not known, it will be imported from the color tables.
Each row shows the following parameters:
Type | Type of color as set in the overprint properties | |
ND | Neutral density | |
SL | Step Limit | |
TCS | Trap Color Scaling | |
TWS | Trap Width Scaling (see below) |
Trap width scaling depends on the trap color. This function lets you change the trap width separately, not only for black but for any colors such as CMYK and spot colors. The trap width depends on the dominant separation in the trap.
Example: If a trap has CMYK values of C 20%, M 30%, Y 50% and K 10%, then yellow is the separation with the highest value and the standard trap width is multiplied with the "TWS" factor for yellow.
| To change the print order: Click the relevant process color. Then click the arrow keys until it is in the position you want. |
Default Ink Set
The predefined neutral densities for CMYK are chosen from ink sets EURO, SWOP or TOYO.
Colors Save
Click this button to save changes you made to the color settings as part of the current settings.
Settings
You can select an existing trap set here. The following sets are available by default:
defaultSet | Default trap set | |
inkReduSet | Example of a trap set with trap color reduction. | |
The page (PDF file) is already trapped. The trapping parameters used from the PDF file display as a default below "Modify" in the "Settings" window. |
Delete...
You can delete settings after confirming an alert message.
From ... To
See Specify a page range.
Remove
All traps on all pages in the set page range will be removed.
You have the option of selecting other documents to remove traps there as well if you use the Shift key with "Remove".
Calculate
Traps based on your settings will be calculated on all the pages in the set page range.
Existing traps will be recalculated.
You have the option of selecting other documents to calculate traps there as well if you use the Shift key with "Calculate".
Modify...
Click "Modify" to modify the trap settings. A new dialog displays. See "Settings" Dialog.
