"Machine offline" connection type

This connection type is available for device classes "Cutter" and "Sheet-fed press". You should select this connection type if the press to be connected cannot be connected directly via JDF/JMF protocol and is also not connected via a Data Terminal but does have the option of CIP3-PPF data transfer. This applies, for example, to older HEIDELBERG presses.

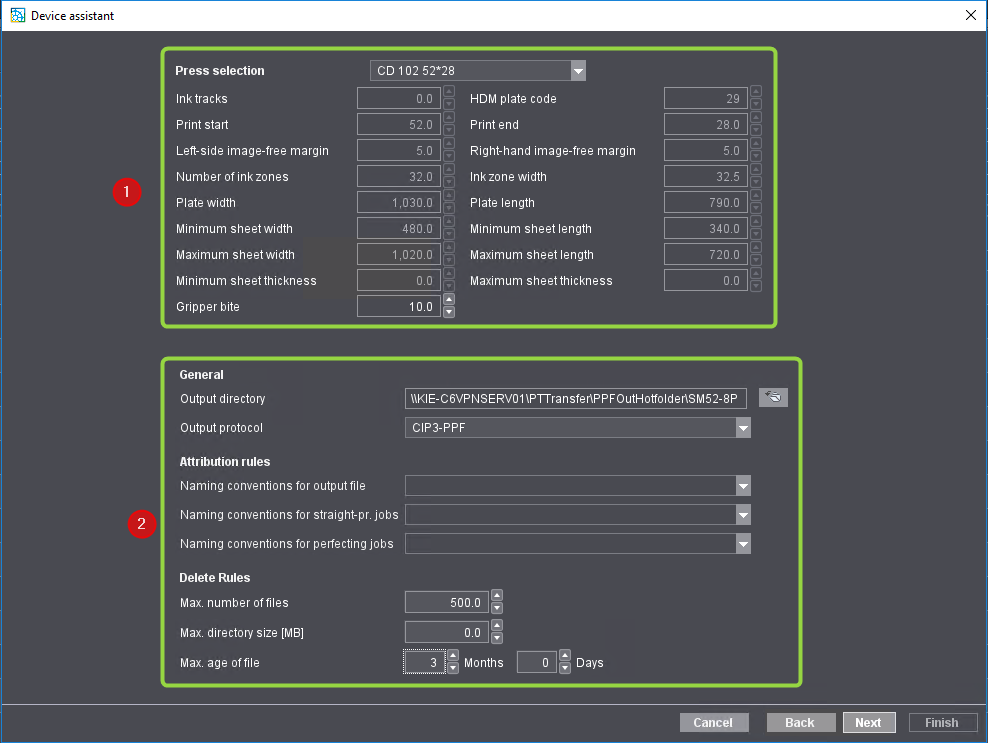

If this connection type is selected, the same settings are available in the subsequent configuration step as in the case of a connection with a Data Terminal with the "Enable Output Presettings" option activated:

Click "Next" when all settings are made.
