Prerequisite: This function is contained in Prinect Packaging Pro.
In the "3D presenter" tab you can view a 3D model of a 1up. In this mode you can define the way of folding as well as the folding sequence. You can also follow the package folding step by step, rotate, pan, zoom the drawing, fit it to the screen, preview animated folding, etc.
To create a "3D presenter" tab from a 1up, click the "New 3D Presenter Drawing" button in the "1up" tab.
|
|
|
"New 3D Presenter Drawing" |

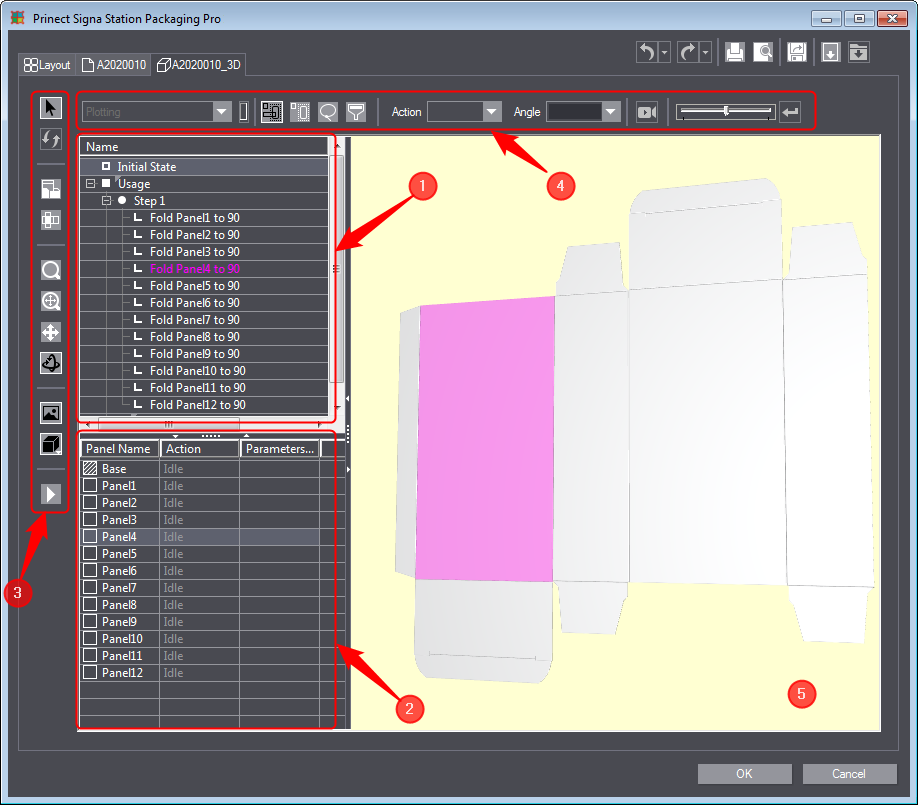

The structure of the "3D presenter" tab is as follows:
3.Tool Bar in the "3D Presenter" Tab
4.Edit bar belonging to the tool selected
5.3D canvas
Some Examples: will be presented at the end of the present chapter.
You can change the view options with the context menu. See The 3D Presenter Context Menu (Packaging Pro).
The completed 3D view can be exported in various formats.
