As already mentioned, the speed index (1) is one of the OEE indicators. See OEE Index. The higher the average printing speed, the more productive is the press.

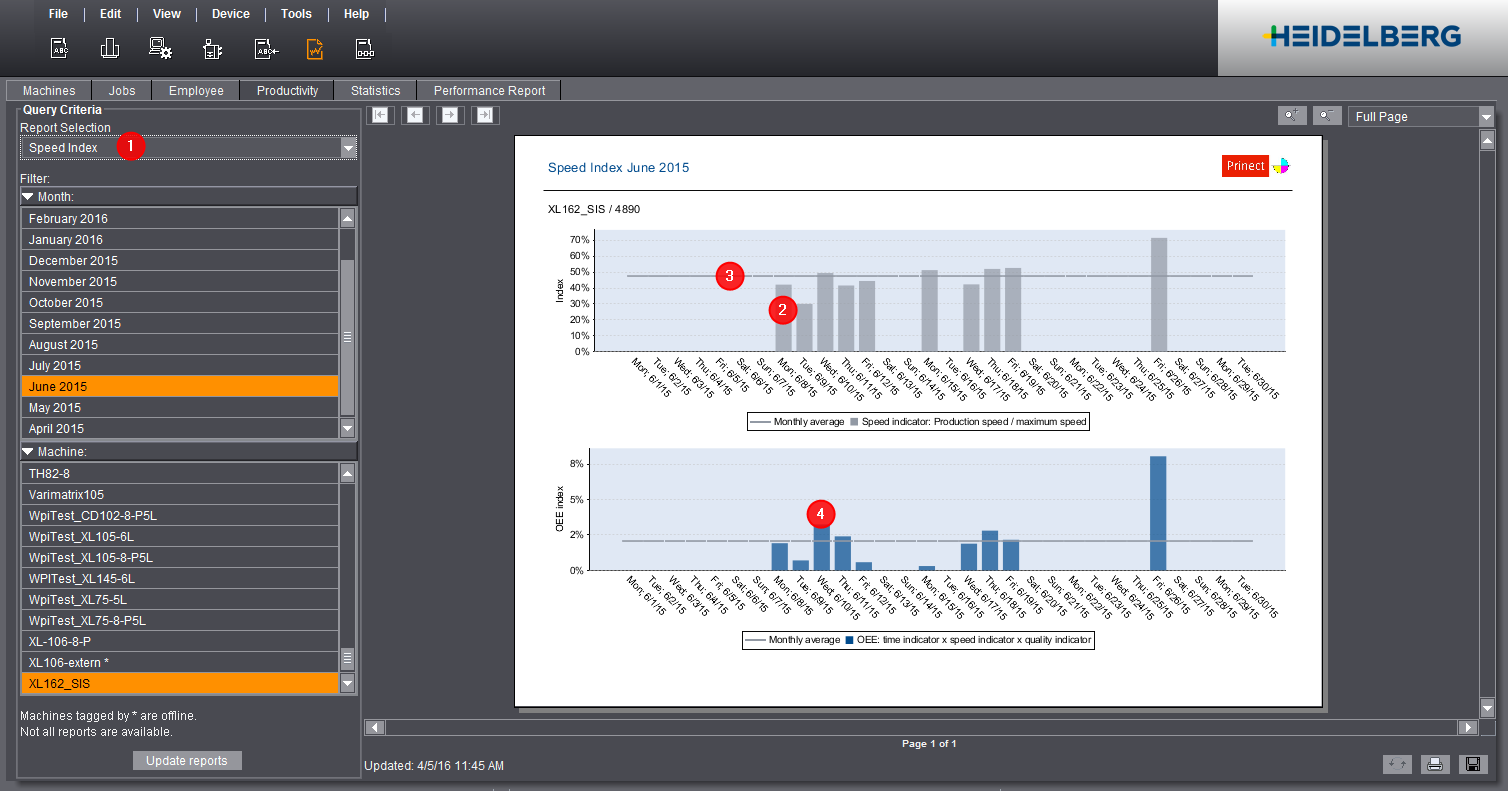

The "Speed index" diagram displays the following information:
•The average speed index for each day (2).
•The average speed index for the entire month (3).
•The calculated OEE index (4) See OEE Index.
Calculating the speed indicator:
Example:
For calculation purposes, a maximum printing speed of 18000 sheets per hour (sheets/h) was defined. See Where do I specify the maximum production speed?. A speed index of 50% would indicate that your jobs are being produced at an average printing speed of 9000 sheets per hour. A speed index of 75% is equivalent to an average printing speed of 13500 sheets per hour.
Where do I specify the maximum production speed?

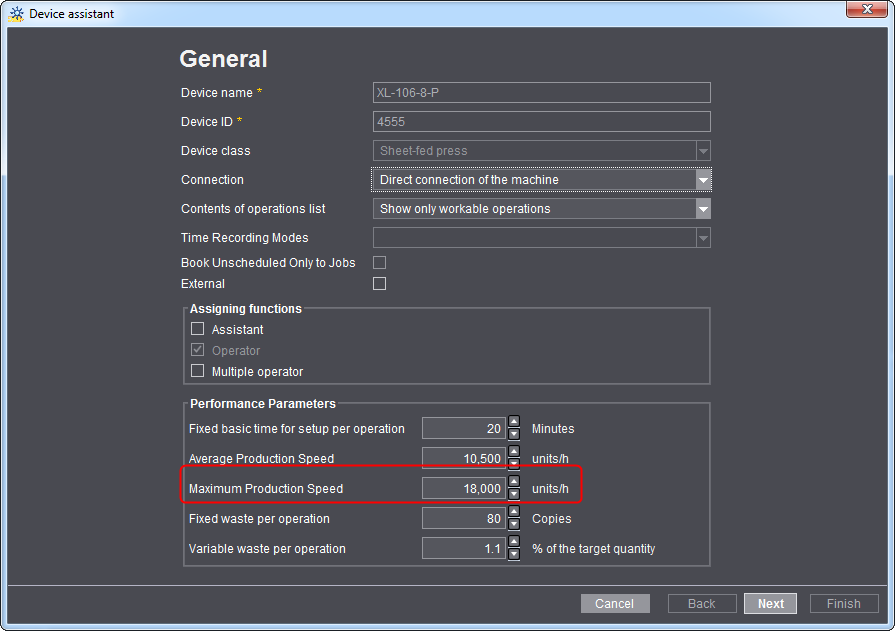

To calculate the speed index, you use the maximum production speed that was set when creating the machine in the Device Assistant. See also "Performance Values per Print Unit" button [Custom machine performance values].
