"Prinect Supervisor" view

The "Prinect Supervisor" is a software module that monitors, starts and shuts down the Prinect software components (services) installed locally on the respective computer. The Prinect Supervisor operates according to the master-slave principle.

•The Supervisor Master can control components both on the PC where it is installed and on other PCs where other Prinect components are installed.

•Supervisor slaves are installed on computers that are connected to and controlled by the Supervisor master computer.

For example, a Supervisor master of a Prinect Production server controls the Supervisor slaves of the connected Prinect Renderer and Prinect Shooter computers. The Supervisor master also controls the stopping and starting of the Prinect components on the Supervisor slave computers.

How is the Supervisor structure formed?

The Supervisor structure is formed during installation of individual Prinect products. During installation, the Supervisors of the respective components are installed. The type and configuration of the Prinect software in the system environment determines, which Supervisors are assigned the Master Supervisor role and which become a Slave Supervisor.

"Prinect Supervisor" User Interface

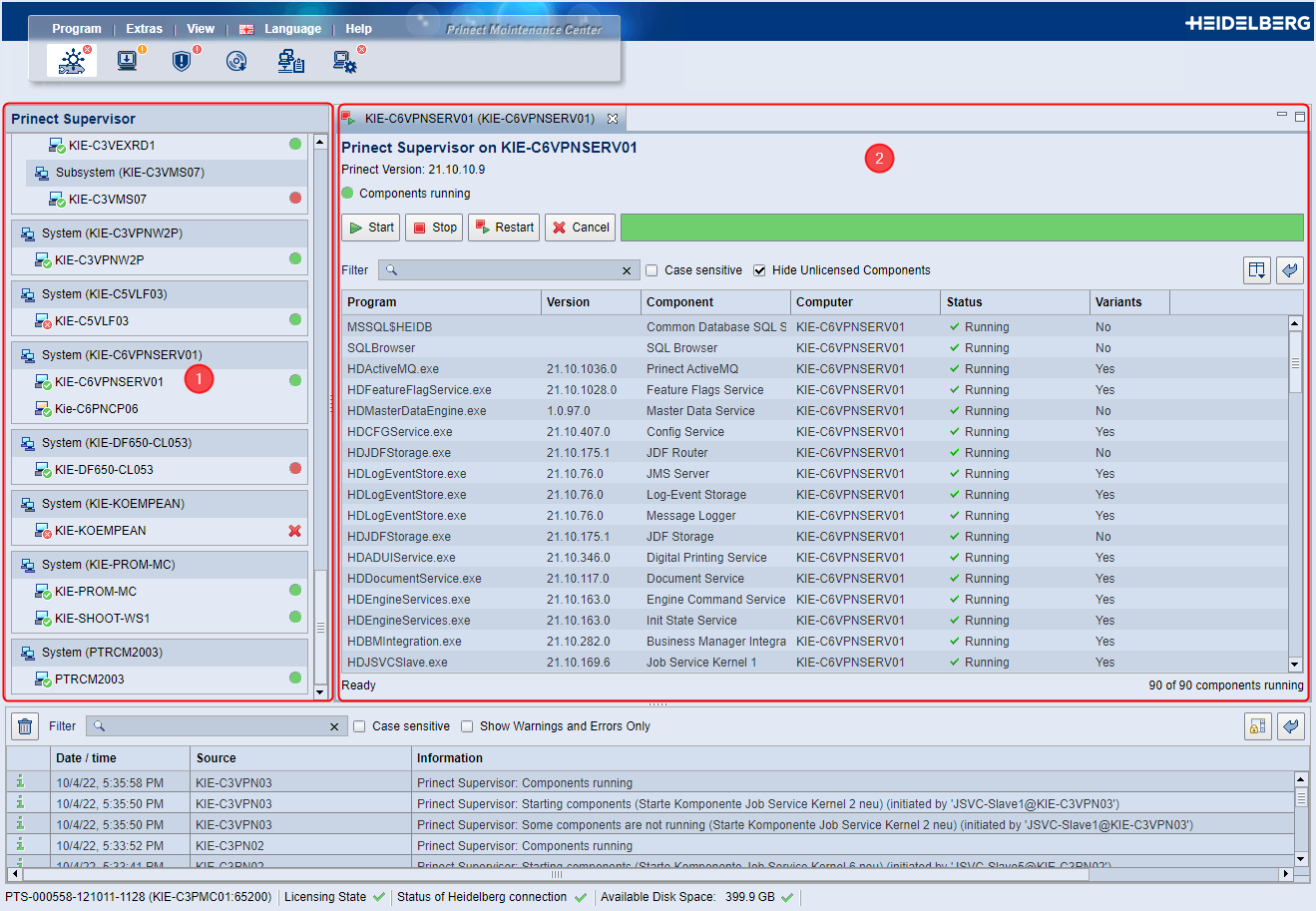

supervisor_view

In this view, you control the Supervisors of the Prinect computers. The view is divided into three sections:

•Navigation pane (1)

•Detail area in the Supervisor view (2)

Navigation pane

The navigation pane of the Prinect Supervisor view displays all computers in the network system environment the PMC can access and connect to. This includes computers that do not have a Prinect Supervisor installed.

Computer Categories

	Movable Computer Individual computers with Prinect software (e.g. Prinect Signa Station) installed that are present in the local network environment are identified by a computer icon with an ocher monitor. These computers are defined as "movable," which means that these computers can be moved to a system, subsystem, or custom group using the "Move" context menu command. Conversely, movable computers can be moved from one group or system to the "Computer" group or another group or system. Movable computers can be moved.
	Computer bound to a system Computers that are bound to a system, for example Cockpit client computers logged in to a Prinect Production server are displayed with a computer icon containing a blue monitor. Computers bound in a system cannot be moved out of the system. Computers bound to a system cannot be moved.
	System A system is a cluster of computers that contains a Prinect Production server as "center". The software applications of a Prinect Production are often installed and distributed among several computers. A software update always applies to the entire Prinect Production system, not to separate software applications. When a software application of a system is to be updated, all interdependencies with the versions of the system’s other software applications are considered automatically and also updated. This is necessary to prevent different update states that do not match each other from occurring within a Prinect Production workflow, making the Prinect software applications not (or no longer) functional. See Systems, Subsystems and Groups. In the navigation pane, Prinect Production servers are given the "System" property: System (computer name). Movable computers that have been added to the system can be moved and removed from a system. You cannot move computers bound to a system that have dependencies with other computers on the system.
	Subsystem In some Prinect configurations, a system may contain one or more subsystems. The subsystem(s) can be updated independently of the main system update. See What is a subsystem?. Subsystem computers and computers bound to a subsystem cannot be moved. These computers can be updated independently of the main system.
	Custom group You can create your own groups of movable computers. The computers included in a group are simultaneously updated by the PMC. See Create a custom group.
	"Computer" group The "Computer" group is a pre-installed group that contains all movable computers that are not members of another group or system. This group serves as an "assembly point" for computers that are not assigned elsewhere.
	Computer is connected The computer is connected to the PMC on the network.
	Computer is offline The computer is not connected to the PMC at present. If necessary, check and correct the connection in the "Administration > Computer Connections" view. See Computer Connections.
	The PMC is currently checking the computer This state is displayed until the license data and the position of the computer in the Prinect structure (part of a system, subsystem, group, or movable computer) are known to the PMC, or if there is an interruption of the connection for a period of two to four minutes. When the required information has been determined, the status changes to "Connected". If this information cannot be determined within a certain period of time, the status changes to "Offline".
	PMC computer A computer that has the Prinect Maintenance Center software installed is identified by an icon with an "M" on the monitor.
	The computer is in the sleep mode. The computer is not running.
	The computer is running on battery power (notebook). No update is possible in battery operation.
	The computer is rebooting During rebooting, the computer is temporarily disconnected from the PMC.

Status Panel

Each computer displayed in the PMC is connected to the Local Information Service (LIS) via the installed Prinect software, as this is a prerequisite for a computer to be managed by the PMC. The Supervisor determines the status of the respective Prinect components. All computers running a Supervisor Master service are identified by a status icon in the navigation pane. The following states can appear:

	All Prinect components controlled by the respective Supervisor have been started.
	The Supervisor is available, but not all Prinect components are started because: •Several or all of the Prinect components have been stopped, •The respective computer is shut down, •Starting or stopping some components has failed. The tooltip of the status icon provides more information.
	Almost all components are started, except those that are in the "Application Processes" level.
	The system is currently being started.
	The system is currently being shut down.
	The Prinect Supervisor is not available. This condition can occur, for example, when the Prinect Supervisor is reinstalled or when there are problems with the connection to the PMC.

Context menu in the navigation pane

You can invoke a context menu for each computer in the navigation pane. The context menu can contain the following items:

Send Message	The "Send Message" window opens. Here you can enter a text message and broadcast it to selected computers in the Prinect system environment. See The "Send Message" window.
Show Prinect Supervisor	A new Supervisor Properties tab opens for this computer in the detail area. See Detail area in the Supervisor view.
Show Inventory	The view changes to the "Computer Inventory" view and shows the inventory of the respective computer. See "Computer Inventory" View.

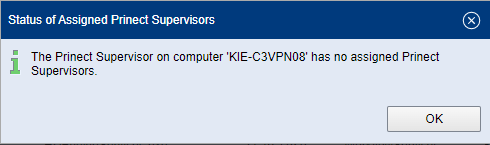

Status of the assigned Prinect supervisors	If one or more other computers with a Prinect Supervisor installed are assigned to the computer, a window displays the status of the assigned Supervisor(s):
Start Related Prinect Supervisor Services	The Prinect Supervisor services (components) are started. This function corresponds to the "Start" button. See Stop, start, restart all Prinect components.
Restart Computer	The selected computer will be rebooted.
Shut Down Computer	The selected computer is shutting down.

IconNote Note: Not all context menu commands are available for all computers or groups. This depends, for example, on whether a Supervisor is installed on the computer in question or whether the computer is connected to the PMC. Only the "Send Message" command is available for group items.
